Clamp-on Micro Flow Sensor
FD-X series

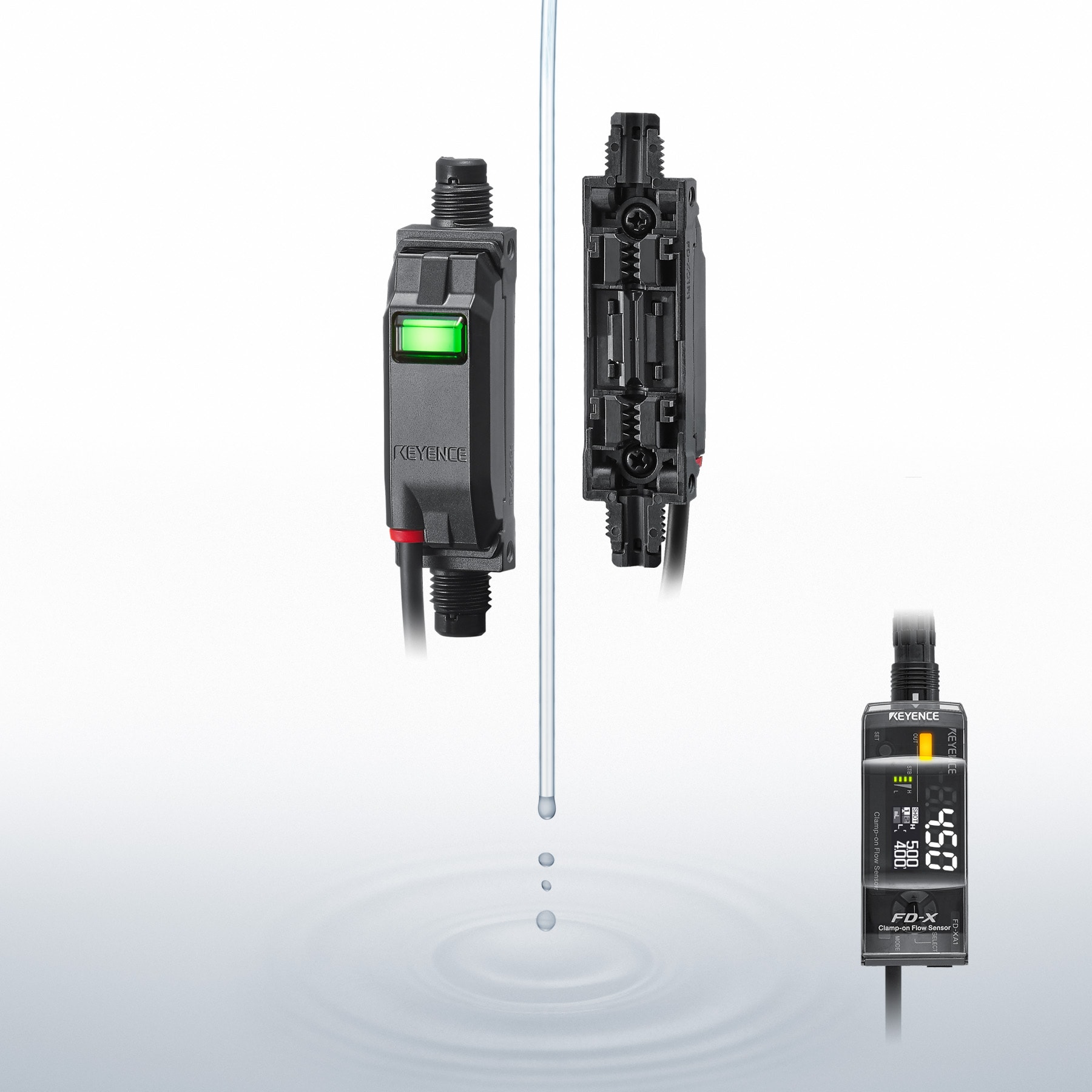

Clamp-on Micro Flow Sensor FD-X series
Low Flow Monitoring from Outside the Pipe
The FD-X Series flow sensors monitor low flow of any liquid by clamping directly on pipes or tubes up to 14mm.
Applications
-
Spraying / Coating
-
Dispensing
-
Filling / Dosing / Injecting
-
Cooling / Lubricating
Features
Utilize Everywhere
- Detect flow rates as low as 0.1 mL/min or shot amounts as low as 0.001 mL
- Any liquid flow rate can be monitored including:
Viscous greases, chemicals, and sanitary liquids - Compatible with metal pipes and resin tubes from 3 mm - 12.7 mm
Zero Impact on Process
- Simply clamp the flow sensor to any pipe or tube
- Completely non-invasive
- No machine downtime or risk of clogging, pressure loss, or contamination
Quick Data Retrieval

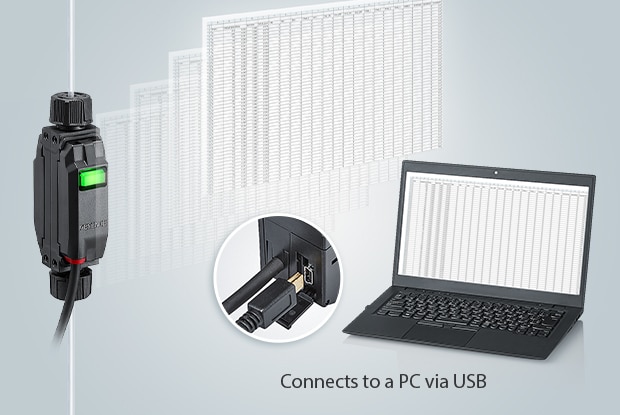

- Export liquid usage data to PC via USB connection
- Communicate with the FD-X over various platforms such as Ethernet/IP®, CC-Link, DeviceNet®, etc.
- IO-Link compatible
