Geometric Dimensioning

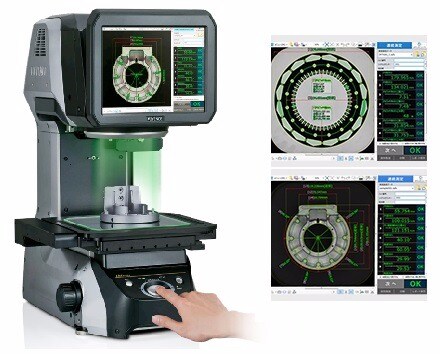

What is the KEYENCE IM Series?

The IM Series Instant Measurement System is a visual inspection system that performs measurements that previously required a range of inspection systems including optical comparators, hand tools, measuring microscopes, and Geometric Dimensioning and Tolerancing (GD&T) and profile measurement systems.
Place and Press Inspection

After placing the part on the stage, just press the button and in just 3 seconds you will receive up to 99 measurements on up to 100 parts with an OK/NG judgment, significantly reducing quality inspection time.

Eliminate Operator Error

Utilizing the IM Series' advanced optics and high-speed image processing technology, measurements are now consistent regardless of who's operating the system.
Automatic Data Recording and Inspection Reports

Unlike a classical digital projector, complete inspection and analysis reports can be automatically saved without having to manually record the data by hand.

For more information please download the brochure.
