Dimensional Measurement Systems

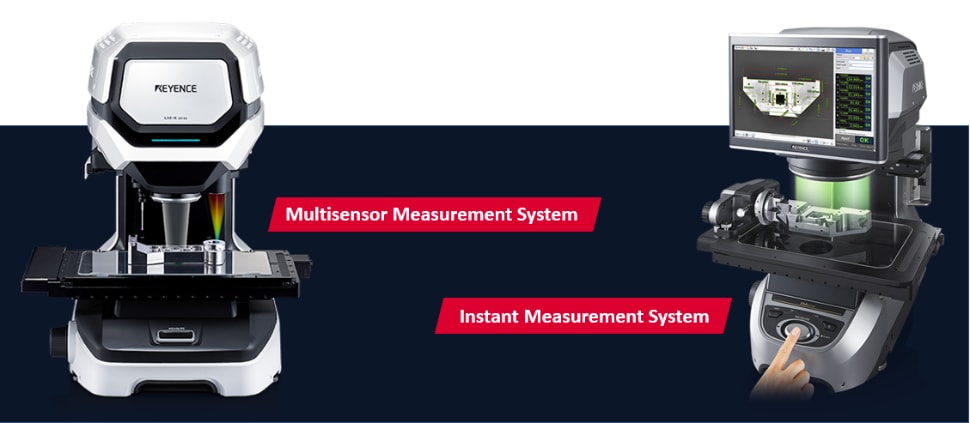

  • Multisensor Measurement System
    LM-X Series

    High-accuracy (±0.1 µm) measurement can be performed easily just by placing the part on the stage and pressing a button. Three measurement methods are available: high-accuracy image measurement, non-contact height measurement via a multi-colour laser, and contact measurement via a 3D touch probe. This product drastically reduces the dimensional measurement time of complex parts and ensures accurate measurements with no variations between results obtained by different operators.

  • Instant Measurement System
    IM-8000 Series

    Just place the part on the stage and press one button. With a 20-megapixel CMOS sensor and a new algorithm for stable edge detection, high-accuracy measurement on up to 300 features within seconds is now possible. A newly developed, optional automated rotary fixture allows for 360' multi-surface measurement on diverse part sizes and shapes. Achieve accurate and repeatable measurements instantly regardless of operator experience.

  • Machined Part

  • Spring

  • Pressed Part

  • Screw and bolt

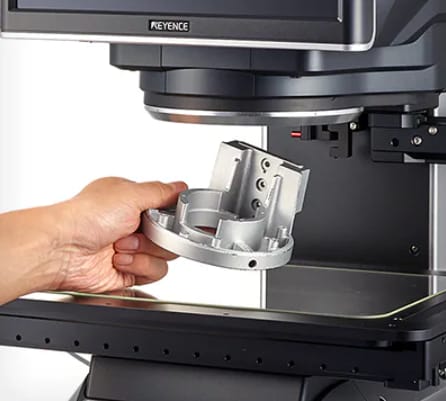

  • IM-8000 Image Dimension Measurement System

    Instant Measurement
    • Simultaneous Measurements Performed in Seconds
    • Intuitive Interface That Anyone Can Use
    • Measure Small, Large, and Three-dimensional Parts

  • LM-X Series High-Precision Optical, Laser, and Probe Measurement System

    Taking "place-and-press measurement" to the next level.
    • High-accuracy submicron measurement / High-speed, high-accuracy 3D measurement
    • Measure up to 5000 locations on up to 1000 parts

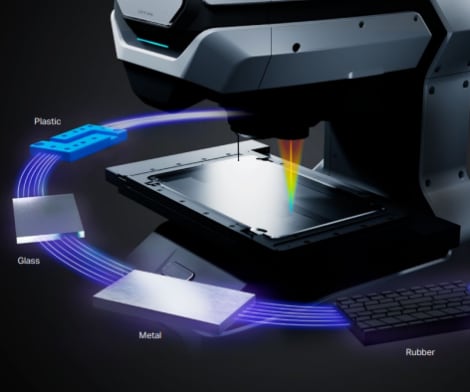

    • Inspect parts with a wide-range of shape, size and material
