Profile measurement:
The measurement solution for your application

• I want to measure a profile inline

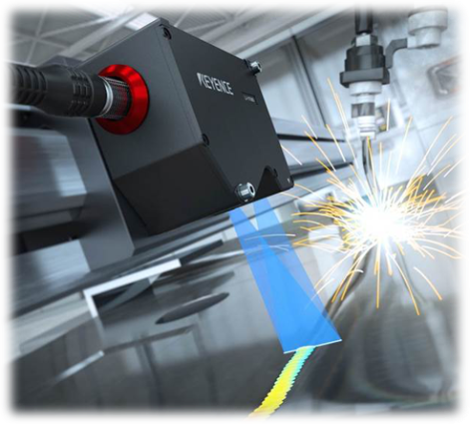

  LJ-V




  • ULTRA HIGHSPEED SAMPLING

    This high precision measurement instrument makes it possible to measure parts moving at extremely high speeds, in high definition, without missing a single one.


  • OVERWHELMING WORKPIECE RESPONSE CAPABILITIES AND DETECTION STABILITY

    Profiles are accurately measured even in cases where black surfaces, inclines with low reflectivity and metallic surfaces with high reflectivity are mixed together under the same optical axis.


  • ALL TYPES OF MEASUREMENTS ARE POSSIBLE WITH SINGLE LASER INTERFEROMETER

    Perform any high precision measurement thanks to the measurement instrument with a variety of head variations and measurement modes, as well as 3D inspection when connected to an image processing system.


  • Download Catalogue

• I want to measure a profile offline

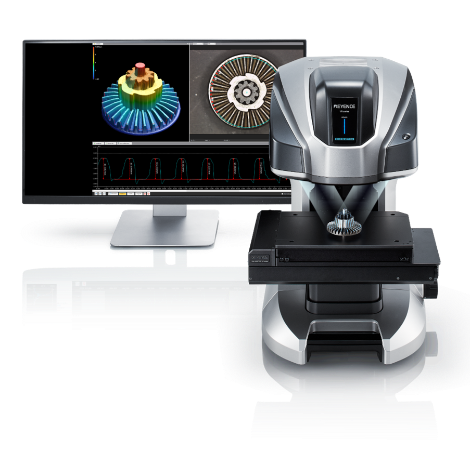

  VR-5000




  • NON-CONTACT PROFILE MEASUREMENT IN 1 SECOND

    With the VR-5000, the user places their sample on the stage, clicks measure, and receives profile measurements in seconds, even on complex surfaces and wide areas. Non-contact profile measurement enables parts to be measured without introducing scratches to the surface of the sample with a probe tip.


  • MEASURE COMPLEX SHAPES

    Contact measurement tools typically require fixturing, and measuring a curved surface or complex geometry can be difficult. The VR-5000 requires no fixturing, and measurements can be taken anywhere on the sample.


  • REPEATABLE PROFILE MEASUREMENT RESULTS

    Built-in assist tools make it possible to create reference points and lines to prevent variations between users. The VR enables all users to measure the same location as intended.


  • Download Catalogue
