PROFILE MEASUREMENT SYSTEM
The pillars of high level quality inspections are measuring systems that provide fast, easy and consistent measurements. Download our guide in order to learn how to achieve that in your production.
- Download Measurement Guide

PROFILE MEASUREMENT SYSTEM - WHAT IS IM?

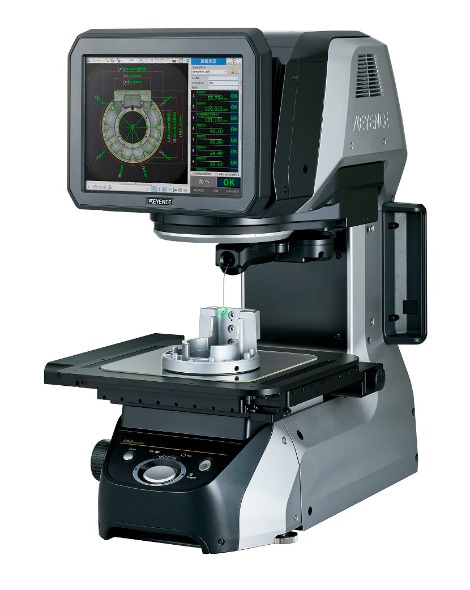

The IM Series Instant Measurement System is a visual inspection system that performs measurements in place of optical comparator, calipers/micrometer, measuring microscope, optical CMM, laser measurement and other measuring systems.
WHAT DO PEOPLE MEASURE?

Common measurement applications are: springs, stamped parts, plastics, rings, gears, bottles, blind holes, threads, and more.

WHY DO PEOPLE USE IT?

Unlike any other profile measurement system, with the IM Series Instant Measurement System users will discover an innovative instrument for measurement applications that can reduce a 10 minutes job to JUST 5 seconds. Since the whole measurement routine is automated together with focus and lighting, no matter who operates the machine, it will give back always consistent results.
WHAT MAKES THE KEYENCE IM SERIES UNIQUE?

99 measurements can be performed on 99 objects at the same time in 5 seconds with a repeatability of ±0.1 micron, and all measurement results are being automatically recorded. Unlike any other profile measurement system, the IM series has an easy data management system and its operation does not require special skills and expensive trainings - setting up the device literally happens in minutes by only a few clicks. It is a very cost and time efficient solution compared with classic profile projector, measuring microscope or CMM.

WHY KEYENCE?

KEYENCE has been an industry leader in sensing technology since 1974. KEYENCE's direct sales team visits customers with live demo equipment to find the best possible solution for all applications.

Learn more about the IM-Series Instant Measurement System!
