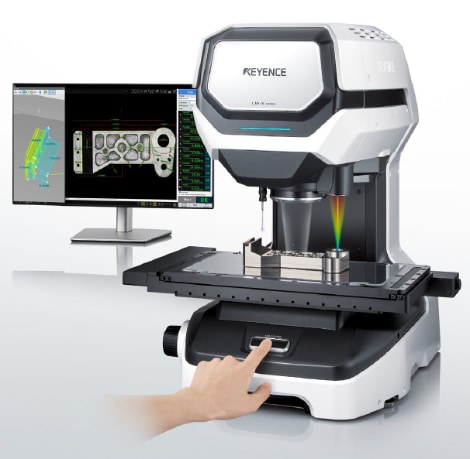

• New LM-X series

  • Multisensor
    Measurement System

    • 3D measurement of three-dimensional targets
    • High-accuracy image measurement
    • Instant height measurement
    • Easy to use - No trained operator needed

  • Accurate measurement for various 3D parts

    The large stage has a maximum measuring area of 325 x 175 mm and a working height of 75 mm. The new design reduces the friction between the motor and feed screws as much as possible, allowing for quick and stable measurement without fixing the part in place.

    A specially designed high-precision linear scale allows the stage movement to be tracked in sub-micron increments. Accurately recognising the amount of stage movement enables highly precise measurements.

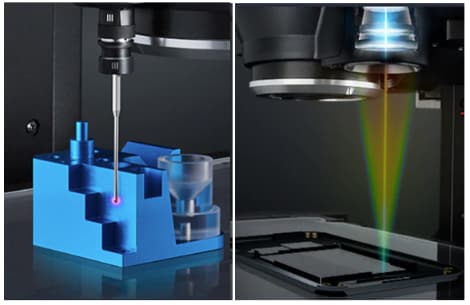

  • The low-pressure measurement touch probe makes measuring three-dimensional machined parts easy, including perpendicularity between top and side surfaces as well as slope angles.

    Measurement systems use a strong measuring force that can cause misalignment with small, light parts. The low-pressure measurement touch probe uses an extremely low measuring force of 0.015 N.

  • Instant height measurement of any shape or material

    • Fast: The white confocal laser enables instantaneous measurement.
    • High accuracy: Combining the light source and other parts in the optical unit while leaving only the lens in the head enables high-accuracy measurement. No heat or electrical noise interference.
    • Usable with any material: Measurement is possible for any material, including metal, plastic, glass, rubber, and ceramic.

  • Versatile color illumination for stable measurement

    The programmable ring-illumination unit integrates multiple ring illumination functions into a single unit. This allows for accurate and stable measurement by selecting the appropriate illumination for the measurement location and part.

  • Progressive stamped parts

  • Precision metal parts

  • Connectors

  • Injection-moulded parts

  • Three models to meet a variety of needs

    • Multi-colour laser model
    • Touch probe model
    • Multi-colour laser + Touch probe model
