• Digital Microscope

    View, capture and measure with
    an all-in-one system

    VHX-7000 series

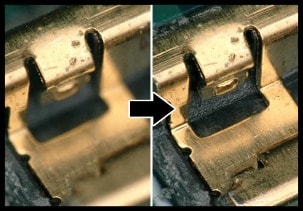

  • Large depth of field

    Automatic seamless zoom from
    20x to 6000x

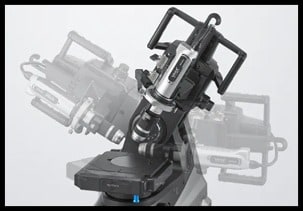

  • 360° Observation

    Observation from any angle

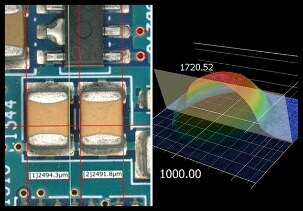

  • 2D/3D Measurements

    Complex 2D/3D measurements, with just the touch of a button


High-Resolution Images Draw Out the Finest Details

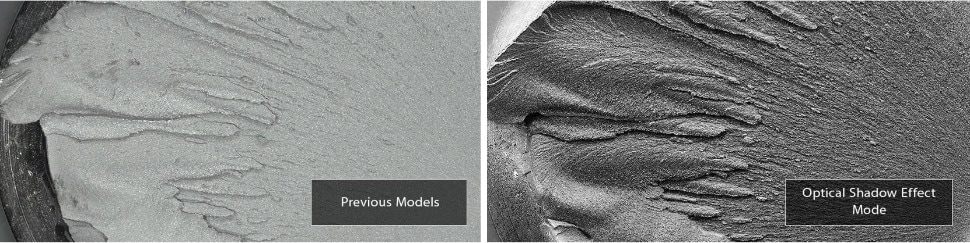

Optical Shadow Effect Mode

Using a specialised design featuring a High resolution lens, a 4K CMOS image sensor and illumination technology, KEYENCE has developed a whole new method of microscopy.

High Definition

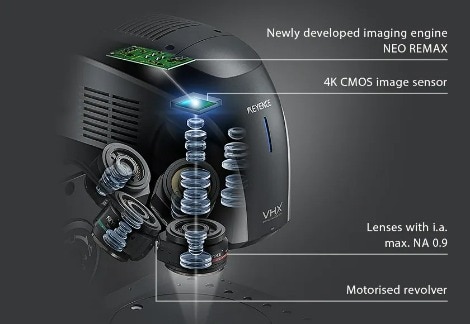

  • 4K Fully-Integrated Head

    This series combines a large depth of field with high resolution, thanks to a 4K CMOS image sensor and a newly developed optical system.

    The wide range of viewing modes, including brightfield, darkfield, polarised light, differential interference contrast and more, supports all sorts of samples.

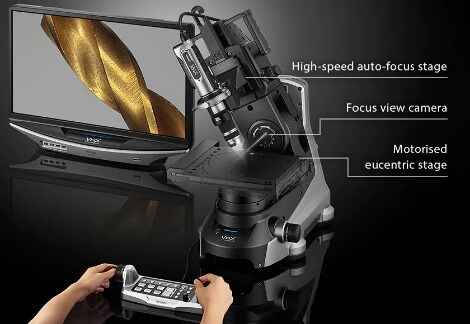

Full-Control System Enables Even First-Time Users to Capture Optimal Images

  • Advanced Operability

    The user simply places the sample on the stage, and everything else – including alignment, focus adjustment, magnification switching and so on – is fully automatic.

    Even first-time users can perform observations perfectly on the desired area without special training.


Applications: Observation

  • Metal structure (800x)

  • Microneedles (200x)

  • Solar battery (1000x)

  • Residual stress on a toothbrush (20x)

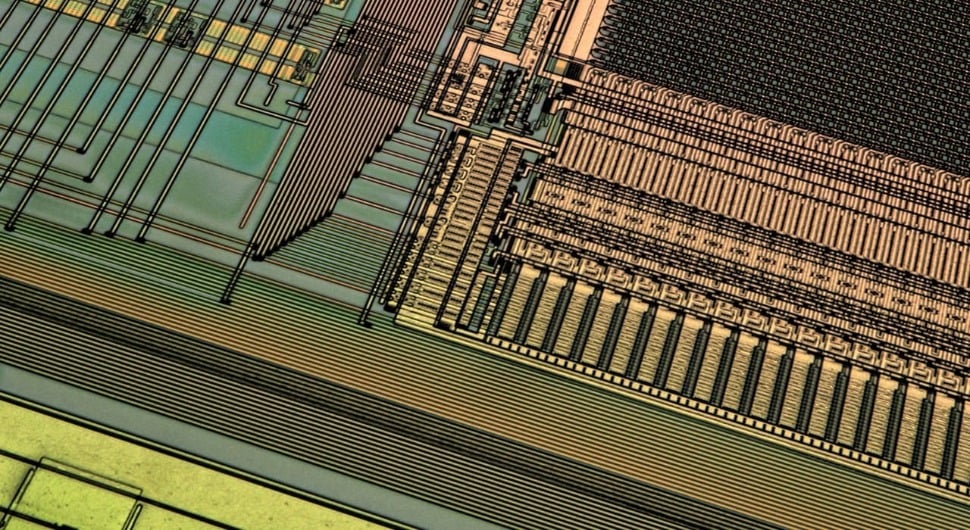

CMOS chip (400x)
