Ultra High-Speed/High-Accuracy Laser Displacement Sensor
LK-G5000 Series

STANDARD DISPLACEMENT/DIMENSION MEASUREMENT MODEL

MEASURE HEIGHT, THICKNESS, WIDTH, HEIGHT DIFFERENCE, AND RUNOUT WITH JUST ONE DEVICE

Download Catalogue

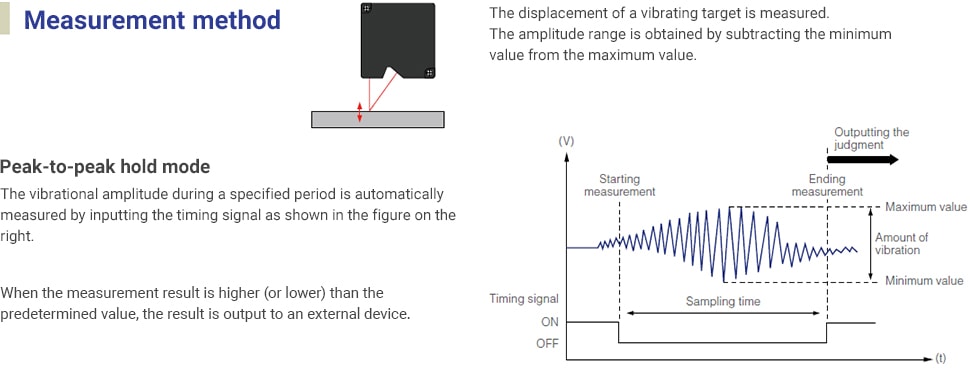

Measurement method The displacement of a vibrating target is measured. The amplitude range is obtained by subtracting the minimum value from the maximum value. Peak-to-peak hold mode The vibrational amplitude during a specified period is automatically measured by inputting the timing signal as shown in the figure on the right. When the measurement result is higher (or lower) than the predetermined value, the result is output to an external device.

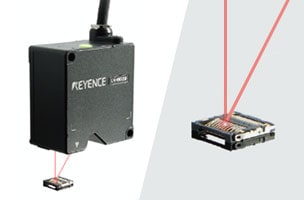

Non-contact measurements for usability, for a variety of targets

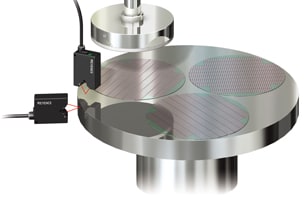

  • Susceptor vibration measurement

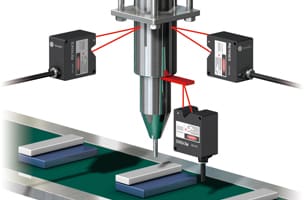

  • Detecting the vibration of an ultrasonic welder

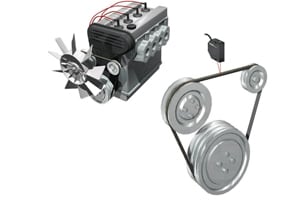

  • Fan belt vibration measurement

Download Catalogue

49 different combinations available, guaranteeing that you’ll find a configuration to suit your needs

Three types for various measurement targets

  • Coarse measurement type

  • Fine measurement type

  • Transparent/mirror measurement type

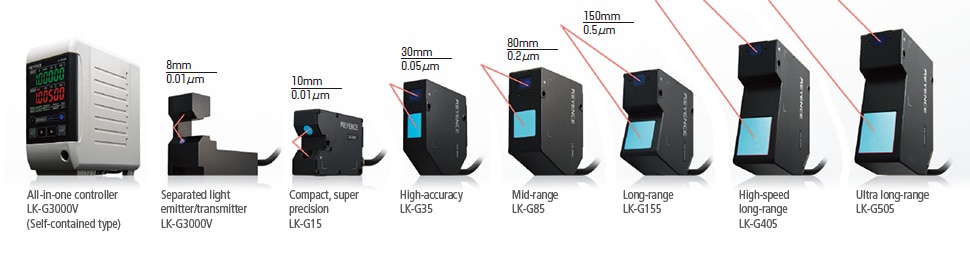

Lineup of sensor heads capable of covering from 8 mm to 1000 mm

Download Catalogue

Download the catalogue
for details.
