MONITOR MOTION
WITH PRECISION

  • Built in tools for displacement, velocity, and acceleration
  • Highest accuracy in its class
  • 392kHz sampling rate

Download Catalogue

LK-G5000 Laser Displacement Sensor

  • How does the sensor work?

    The LK-G5000 is a laser triangulation sensor that calculates distance to its target using a CMOS chip and a known angle.

    What types of targets can be measured?

    The sensor uses advanced optics to get stable readings from virtually any surface including rubber, metal, and transparent targets.

    • Position monitoring

    • Glass vibration

    • Disc-rotor run-out

  • Why is sampling speed important?

    Sampling speed is a critical component for accurately capturing a target’s motion.

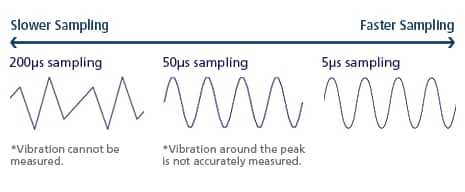

    Slower Sampling / 200μs sampling *Vibration cannot be measured. 50μs sampling *Vibration around the peak is not accurately measured. 5μs sampling / Faster Sampling

    When measuring a part vibrating at 2kHz, more data points can be collected per cycle at higher sampling speeds. This results in a more accurate curve.
