NEW Expanded

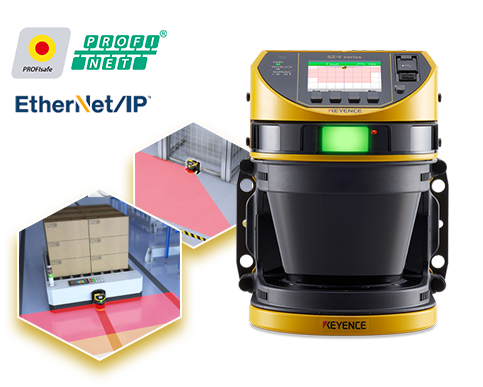

Network Applications Safety Laser Scanner SZ-V Series

Download Catalogue

PROFIsafe / PROFINET / EtherNet/IP®

Broad network support Supports PROFIsafe/PROFINET

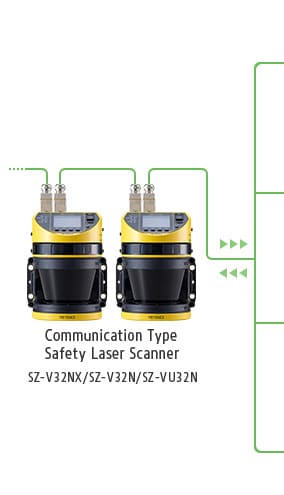

  • Communication Type Safety Laser Scanner / SZ-V32NX/SZ-V32N/SZ-VU32N

    • Safety Communication

      • Protection zone detection
      • Bank management
      • Warning zone detection

      PROFIsafe

    • Non-safety Communication

      • Scanner status
      • Alert status
      • Error status

      PROFINET or EtherNet/IP®

    • Non-safety Communication

      • Scanner status
      • Alert status
      • Error status
      • Distance data per angle

      UDP command communication

    • Configuration & Monitoring

      • View settings
      • Change program
      • Monitor zones
      • Monitor images/videos

      SZ-V Configurator Only for types with cameras.

Download Catalogue

New applications made possible with the SZ-V and PROFIsafe

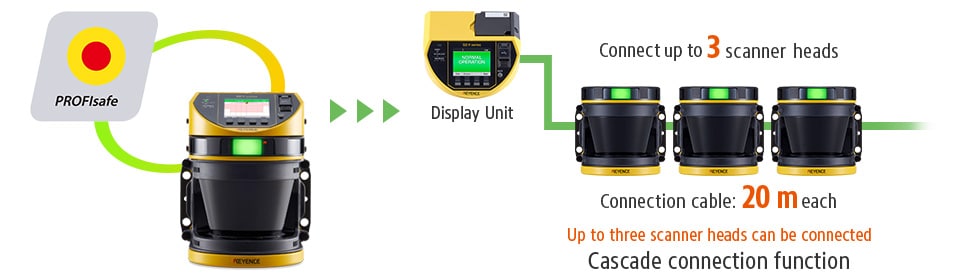

PROFIsafe / Display Unit, Connect up to 3 scanner heads, Connection cable: 20 m each, Up to three scanner heads can be connected Cascade connection function

  • Before

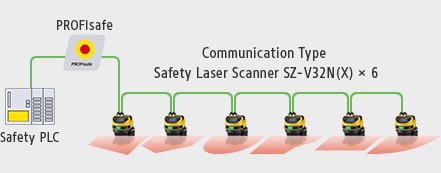

    Safety PLC / PROFIsafe / Communication Type Safety Laser Scanner SZ-V32N(X) × 6

    One laser scanner is required for each zone.

    Cost reduced to 1/3

  • After

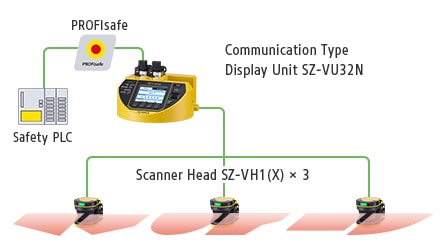

    Safety PLC / PROFIsafe / Communication Type Display Unit SZ-VU32N / Scanner Head SZ-VH1(X) × 3

    Costs are reduced with the cascade connection function and the ability to monitor two protection zones separately

For details, see the catalogue
