Type 4 safety light curtain

Safety light curtains are safety devices that create a virtual barrier around a hazard. These devices meet the highest safety standards of Type4, SIL3, Category4, and PLe. Integration is efficient and easy with the minimal footprint, durable housing, and options for reduced wiring. Each model achieves the high enclosure rating of IP65/IP67.

Download Catalogues

Include Discontinued Series

Products Lineup

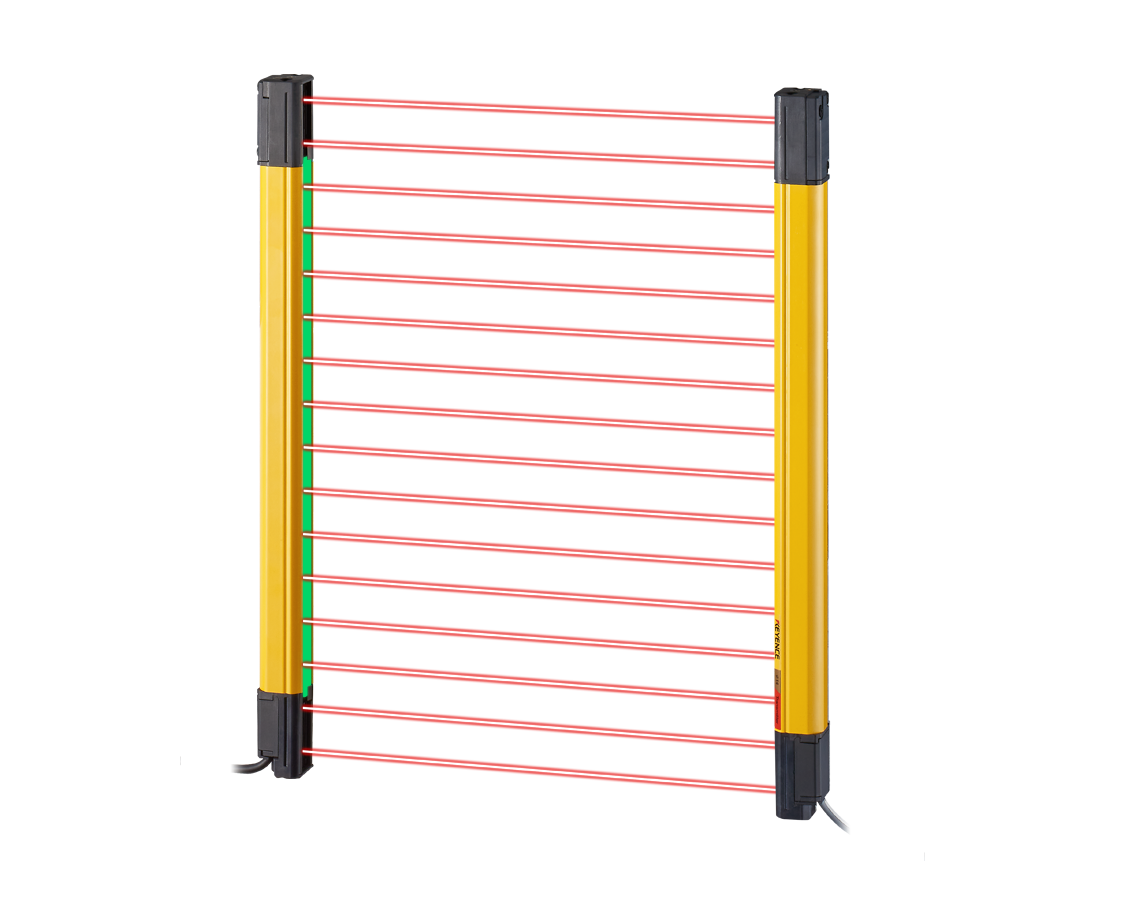

GL-V series - Small & Robust Safety Light Curtain

New Small & Robust Safety Light Curtain GL-V series

The GL-V Series features full length, highly visible indicators to easily understand the light curtain's status at a glance. These indicators also provide built-in alignment assistance, making installation quick and easy. Wiring is simplified with standard M12 5-pin connectors and optional Y-connector, requiring only one cable back to the control panel. This series also has an incredibly fast response time, reducing the necessary mounting distance from the hazard. Additional features include network compatibility, no dead zones, high environmental resistance, and a durable, slim housing.

Catalogues Price

Features

Easy to Understand Full Length Indicators

Equipped with Full Length Indicator Lights, Shadow Feature, and Built-In Alignment, the GL-V gives clear visibility for anyone to understand status, location of broken beams, and streamlines any troubleshooting efforts.

During Setup

The indicator shows if there are any abnormalities during setup, such as miswiring or beam axis misalignment.

Miswiring

Flashing red

Beam Axis Misalignment

Green lit at intervals

Adjusting

The light curtain can be easily aligned in three steps. The indicator changes with each step, facilitating easy alignment.

1. Align the Top

Red at the top

2. Align the Bottom

Green intervals

3. Rotate to Full Strength

Full green

Operating

In addition to confirmation that enough light is being received, the GL-V also indicates if the transmitter or receiver is dirty, or if the beam axis is misaligned.

Light Received

Green

Dirty or Beam Axis Misaligned

Lit in green (Partial lighting)

Blocked

Blocked areas are not illuminated red

Usable anywhere Small and Robust

Although small in size (22 × 22 mm), the GL-V series has approximately 3 mm thick robust body and features a twin bumper structure to protect the lens surface. The environment-resistance enclosure rating meets IP65/IP67 standards.

Small

While small, the main unit case has a robust structure approximately 3 mm thick, making it impact resistant and minimising twisting of the main body.

Robust

The most common cause of damage to light curtains is damage to the optical surface. The twin bumper has the optimal depth and width to provide excellent protection for the optical surface.

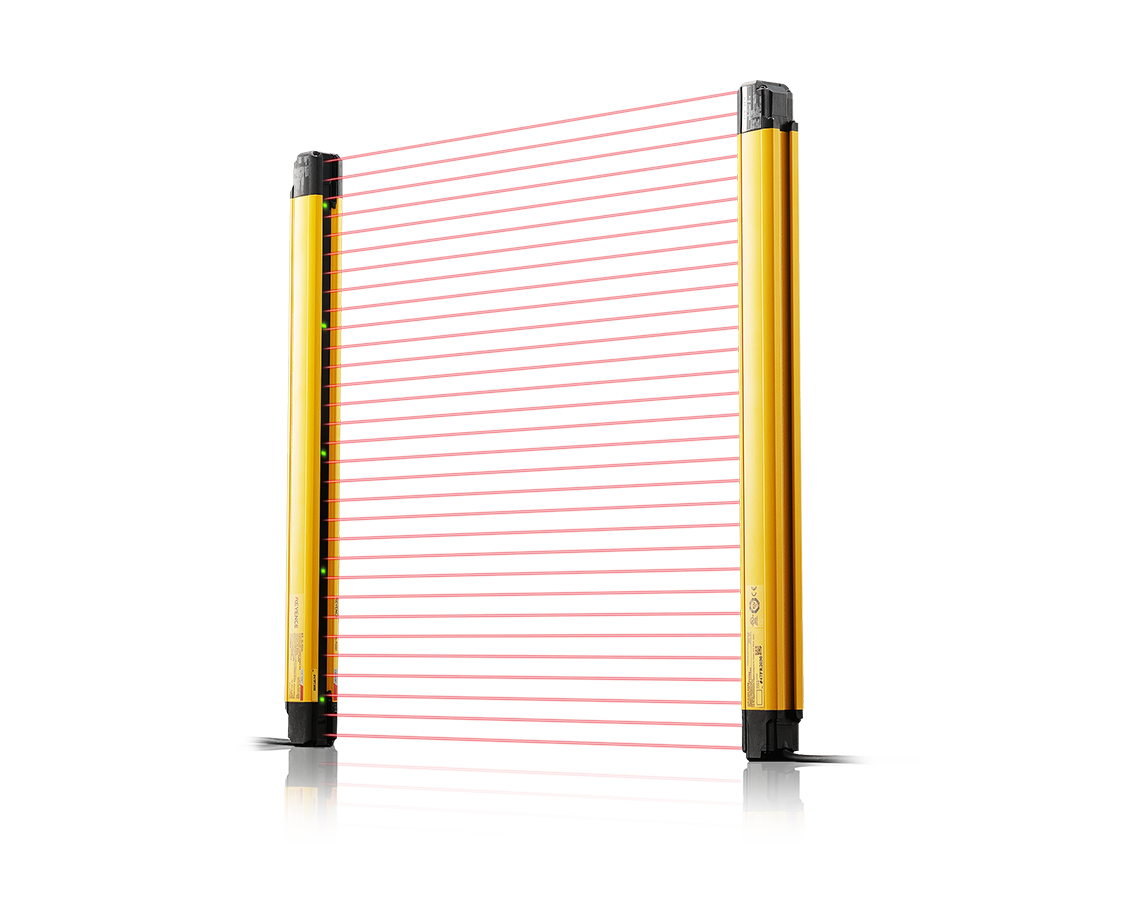

GL-R series - Safety Light Curtain

Safety Light Curtain GL-R series

What makes a light curtain "robust"? KEYENCE has designed a light curtain with a structure that prevents damage from parts or tools by narrowing the exposed lens area and recessing it in an impact resistant housing.

Catalogues Price

Features

Strong - Rugged Exterior Increases Life & Decreases Downtime

STRONG - Rugged Exterior Increases Life & Decreases Downtime

The rugged metal housing and recessed lens make the GL-R resistant to twisting, vibration, and even direct impact. Additionally, its high power (49'+ of range) and increased enclosure ratings (IP65/IP67) allow the GL-R to withstand the most demanding environments.

Smart - Intelligence You Can See

SMART - Intelligence You Can See

Full length status indicators, integrated functionality and built-in series connection are a few of the attributes that make the GL-R Series the intelligent choice.

SL-V series - Safety Light Curtain

Safety Light Curtain SL-V series

For safety and efficiency in the workplace. Introducing a safety light curtain completely focused on visibility.
