Applications Vision Sensor with Built-in AI IV4 series

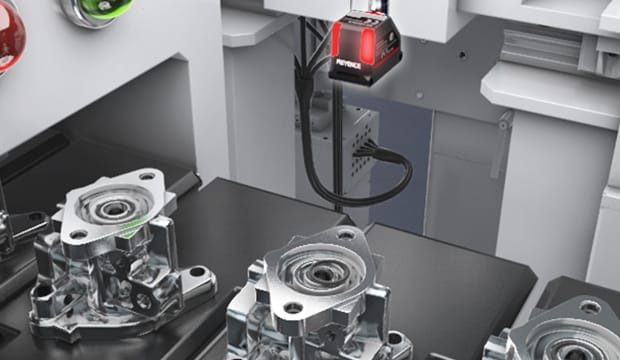

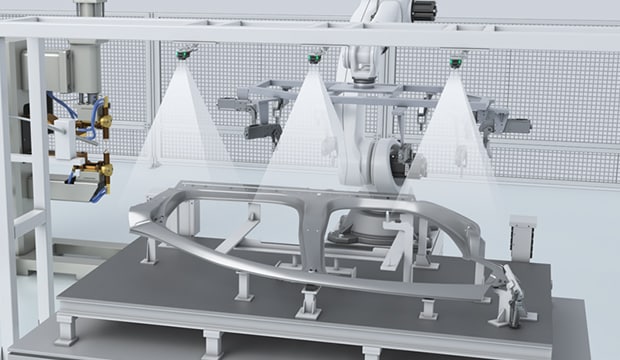

Inspection is performed to determine whether a nut is attached to the panel. Presence checking can be performed for multiple locations using just one device.

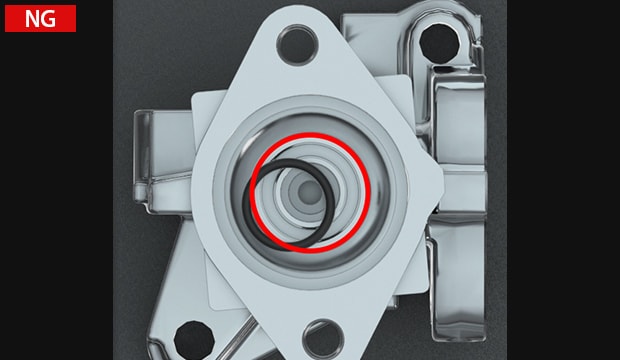

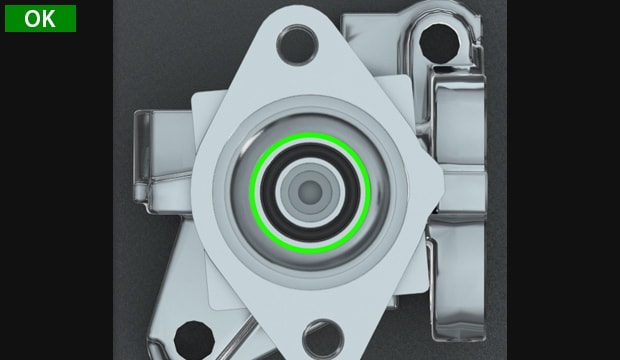

Presence checking is performed for O-rings. The IV4 Series can check not only for the presence of targets but also whether targets are set correctly.

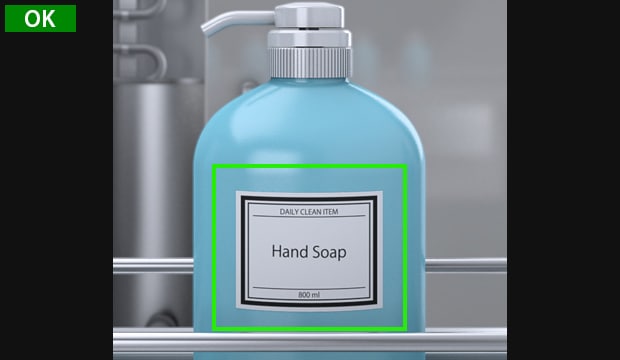

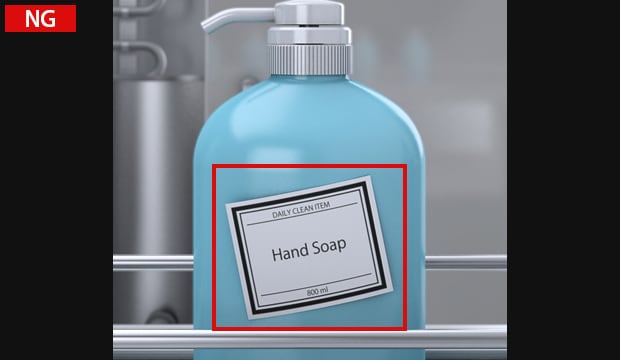

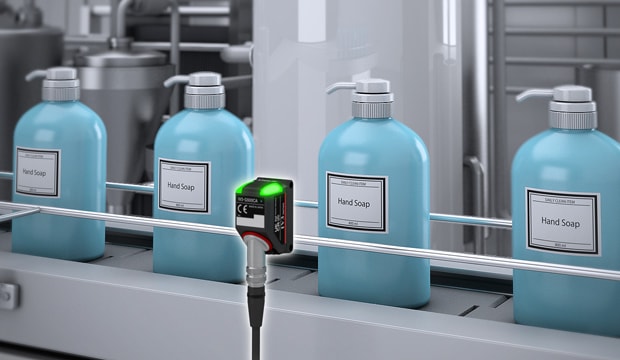

In addition to checking for the presence of labels, checking for proper label alignment is also possible.

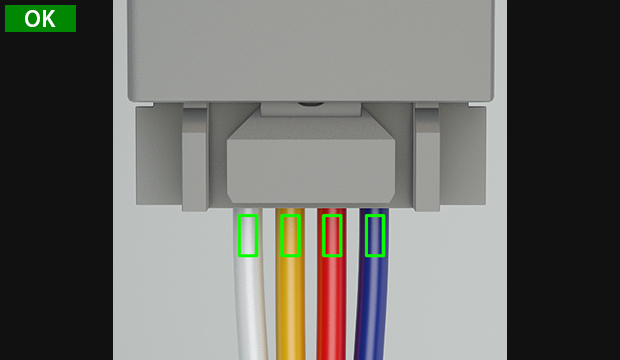

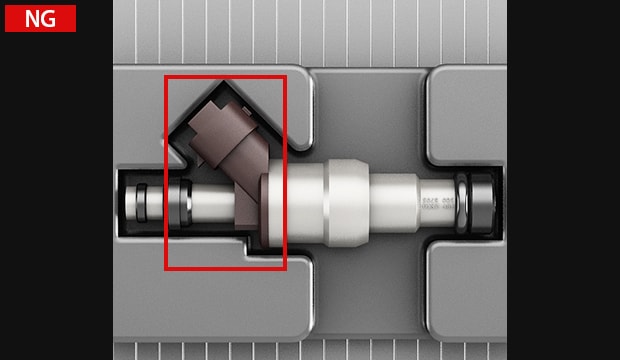

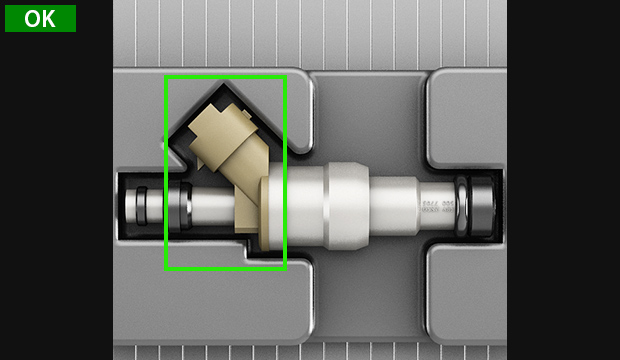

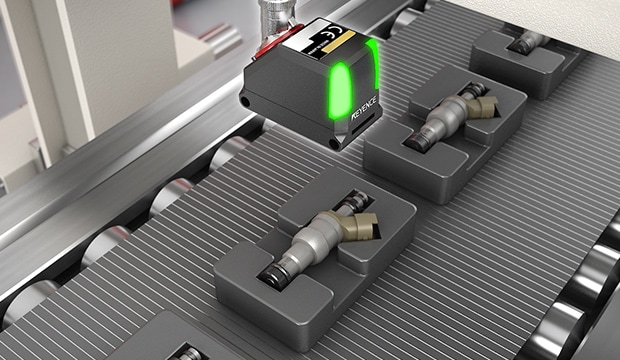

Injector product differentiation is possible based on colour differences of the component parts. Tracking makes detection possible even if the detection position changes.

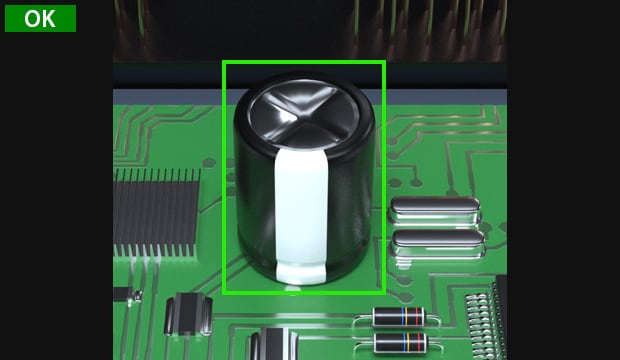

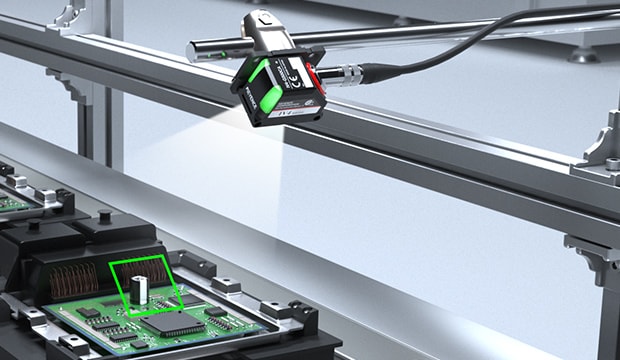

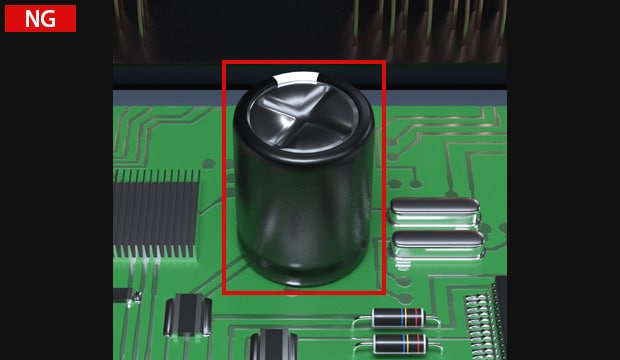

When differentiating between directional capacitors, accurate identification of differences that are not easy to spot with visual inspection is possible.

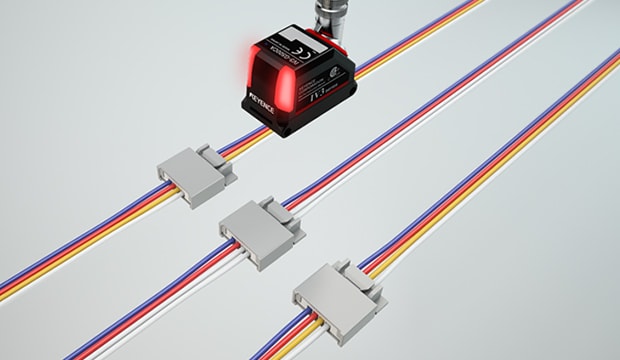

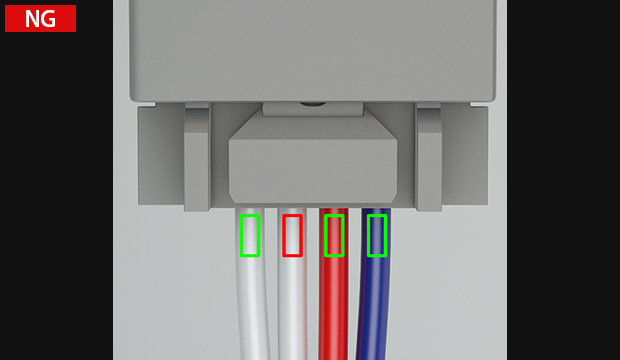

Accurate detection is possible with a single unit even in locations where multiple sensors are required and there is the risk of target displacement.

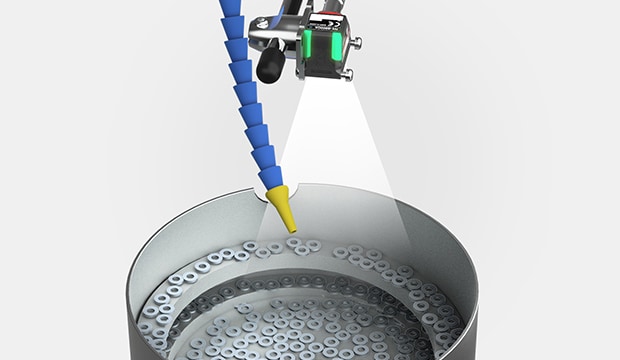

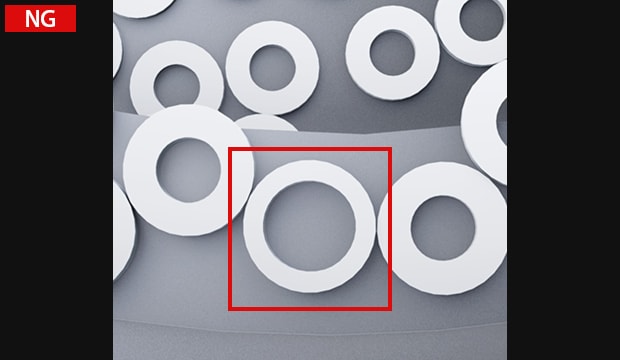

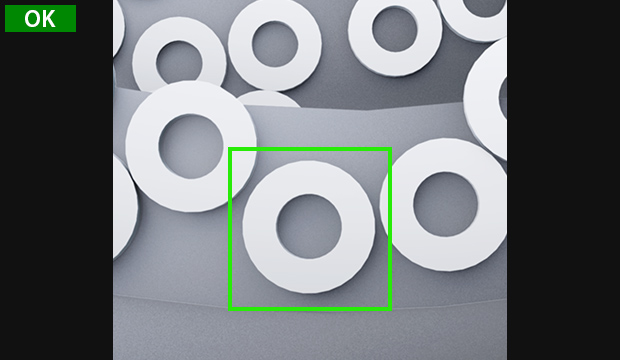

Product type differentiation can be performed directly from the parts feeder with accurate identification of shape differences even in targets of the same size.

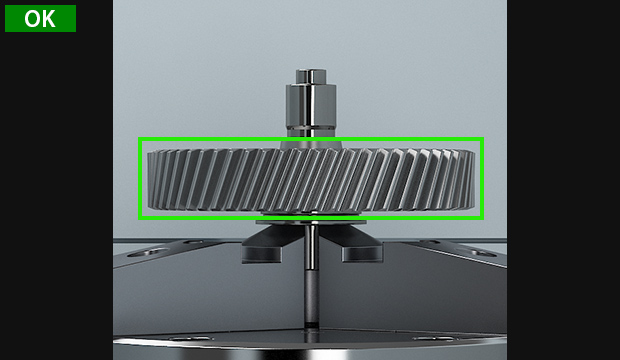

The IV4 Series can determine whether gears are set correctly by accurately identifying differences that are not easy to see with visual inspection.

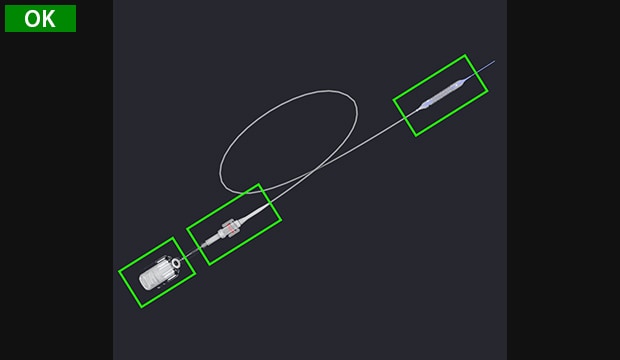

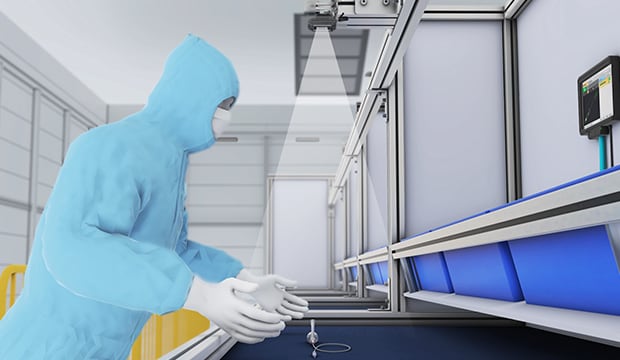

Identifying the different shapes of products even if the position or orientation varies makes it possible to ensure medical tubing is installed correctly.

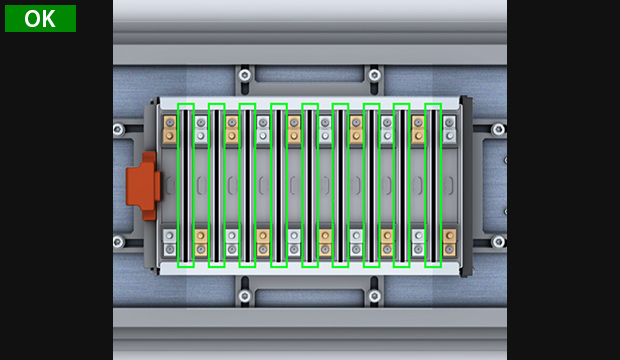

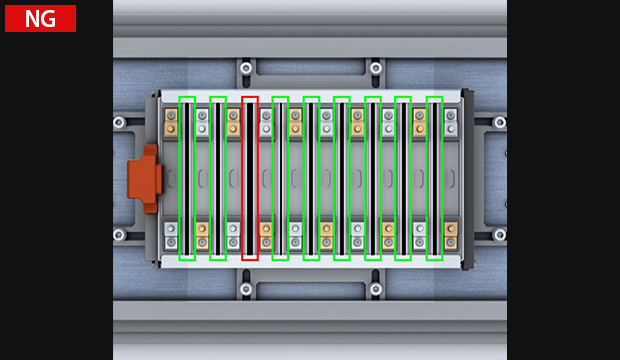

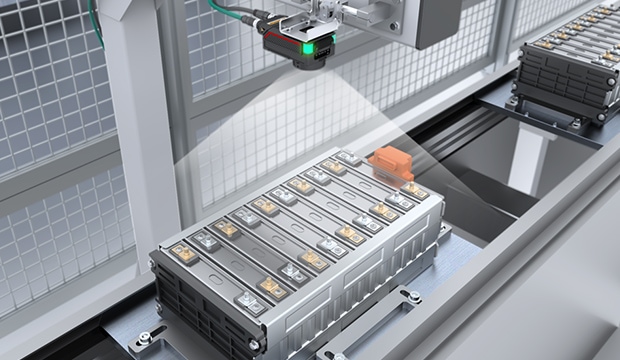

To detect gaps during battery assembly, the width dimension is measured to determine whether the gap is within the acceptable specifications.

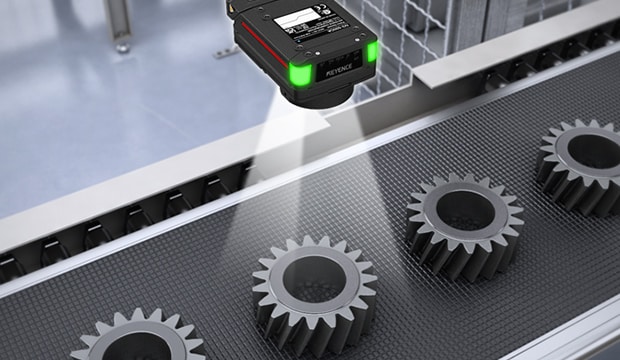

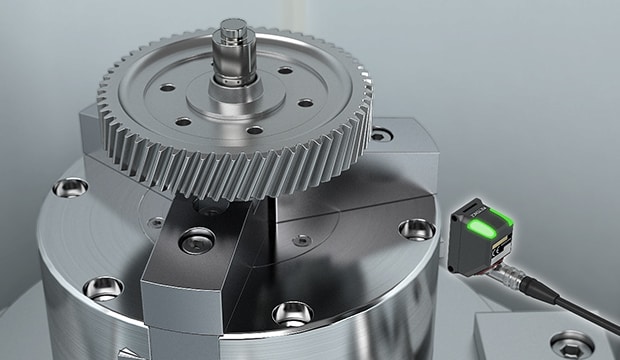

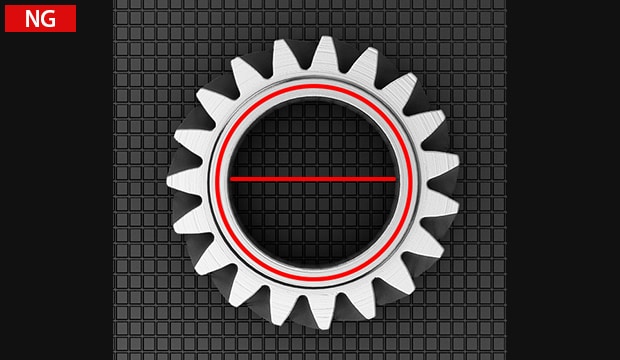

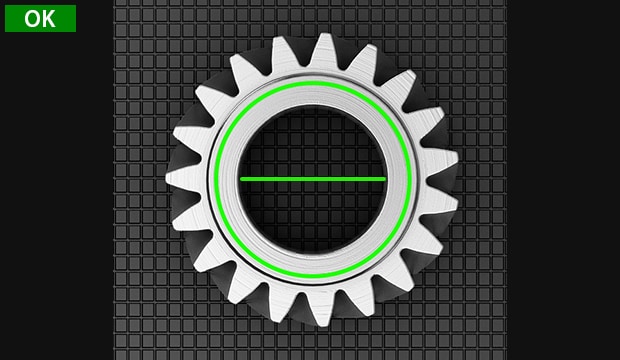

During gear transferring, the IV4 Series can determine if the gear is oriented correctly. Differentiating between gear sizes is also possible by looking at the inner diameter (dimension).

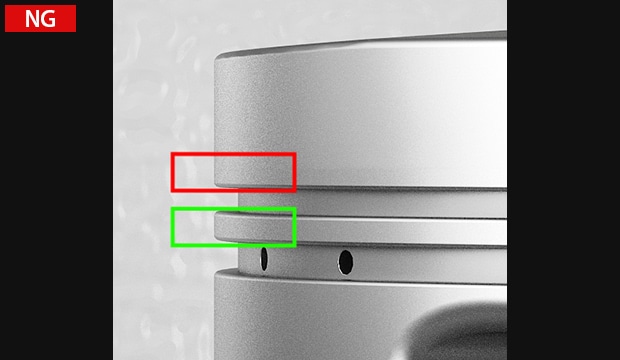

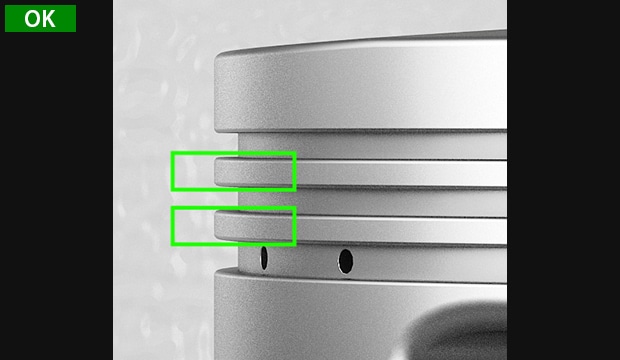

To check for different piston types, the number of grooves (edges) on the target product are counted.

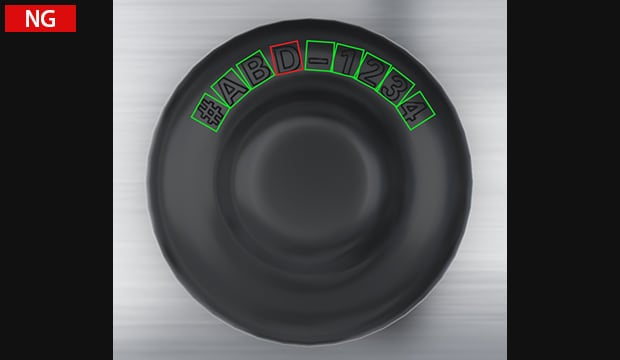

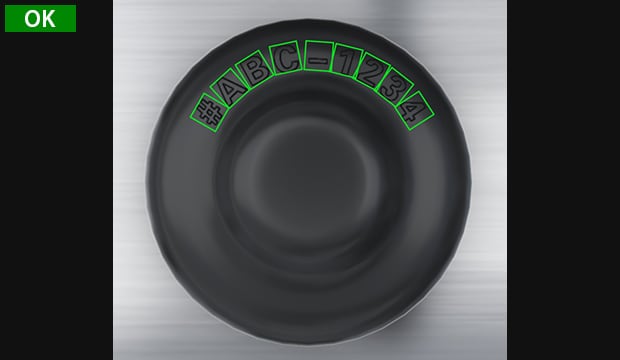

The IV4 Series can check markings on rubber parts, and detection is stable even if the characters are the same colour as the background.

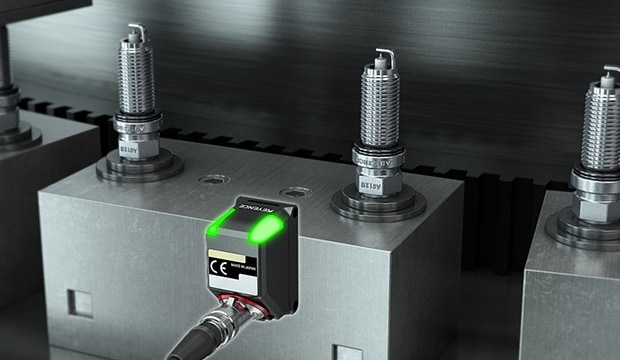

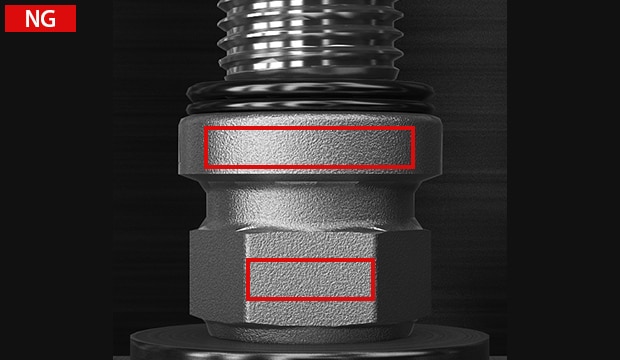

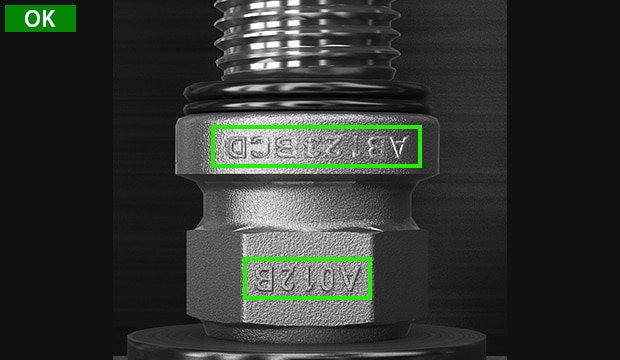

Reliably checking for marking on spark plugs is possible even for targets with troublesome surface conditions.

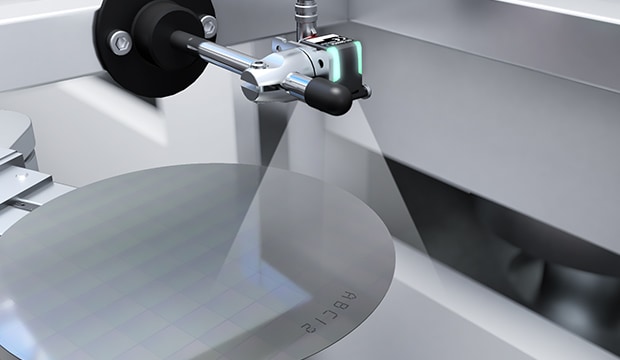

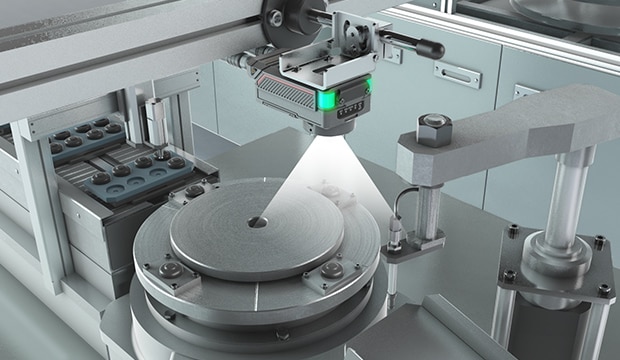

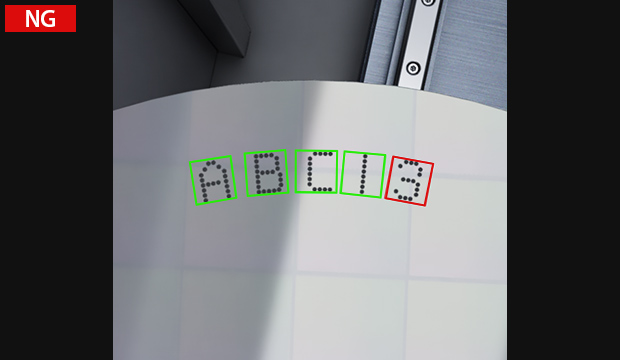

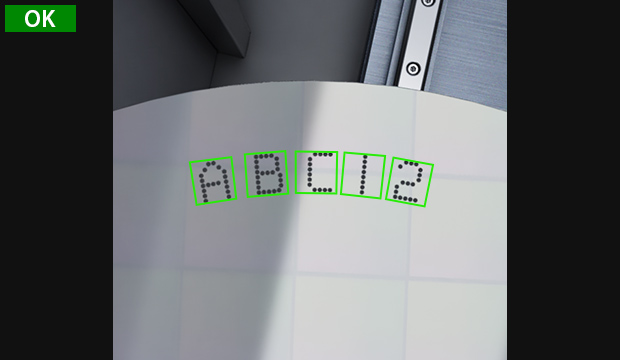

The IV4 Series can identify engraved characters on wafers and ensure reliable detection even with SEMI standard fonts.

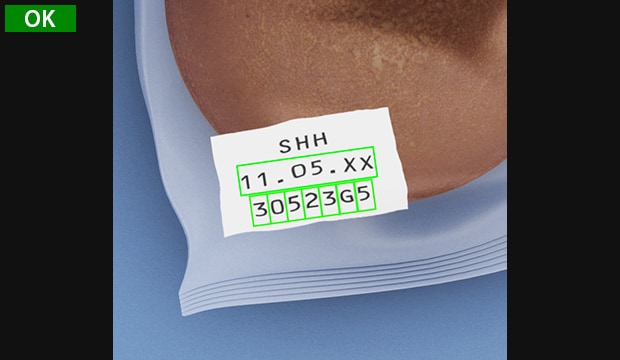

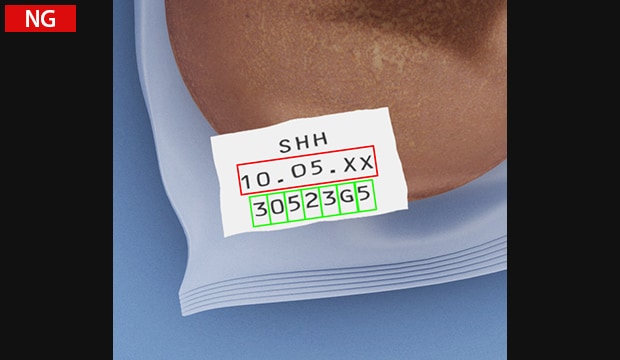

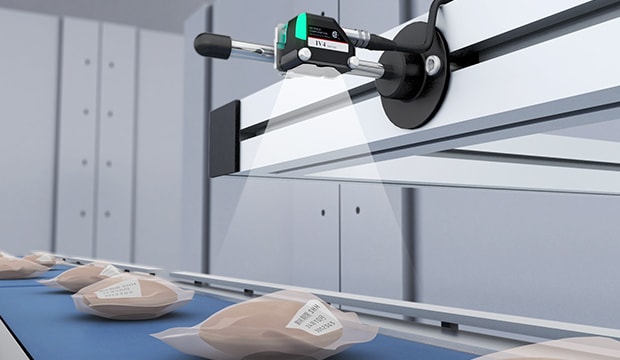

Checking expiration dates is possible even if the bag is tilted or wrinkled.

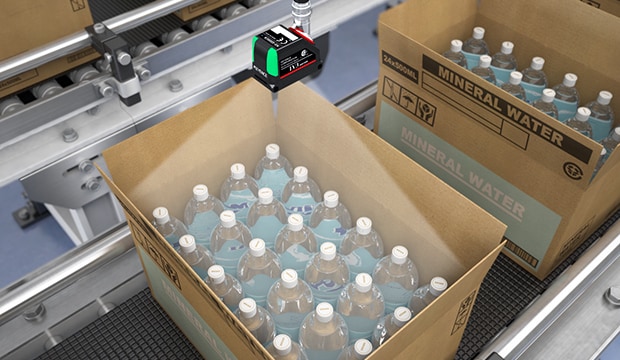

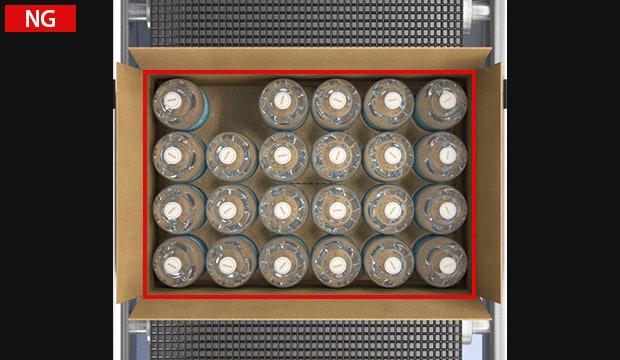

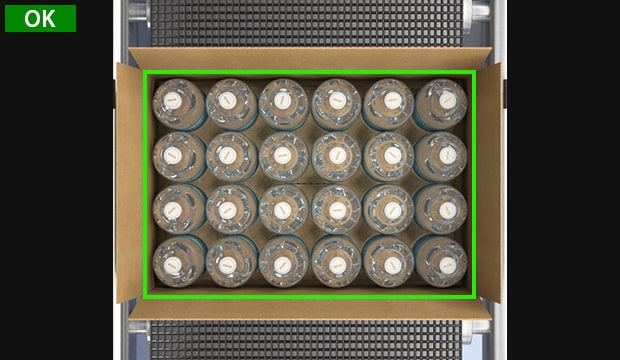

The IV4 Series can check for missing PET bottles by counting the number of bottles in the case.

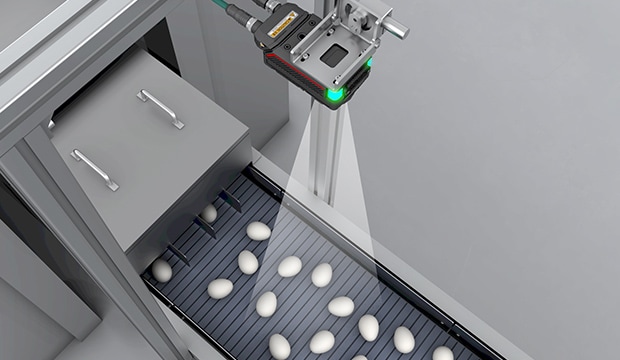

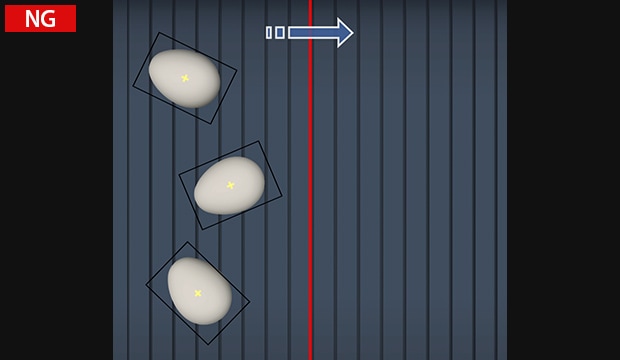

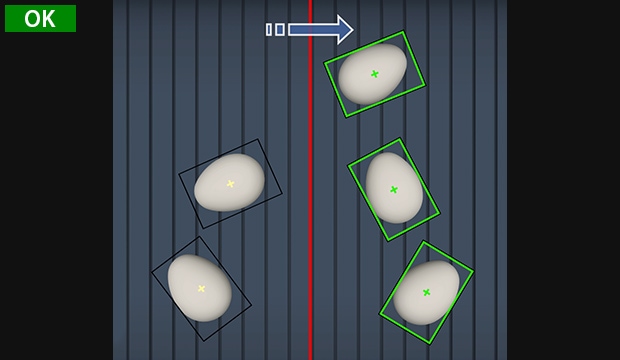

Reliable counting of eggs passing on a conveyor is possible regardless of the position or orientation of the eggs.

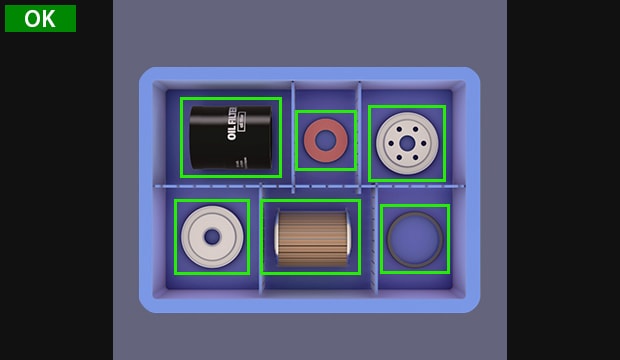

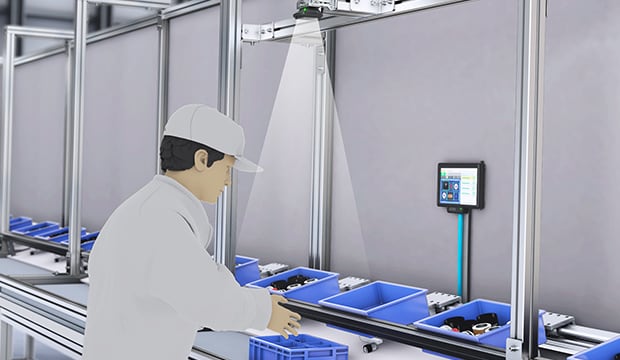

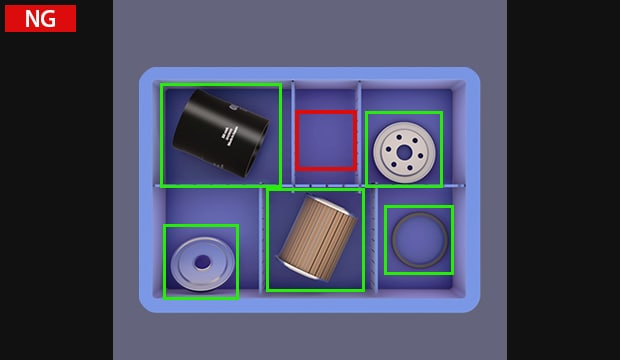

Kitting inspections are possible to ensure the correct parts are included in packages, with accurate counting even if the position and orientation of the parts vary.
