Image-Based Laser SensorIX Series

Height-Based Inspection Throughout an Entire Area
New

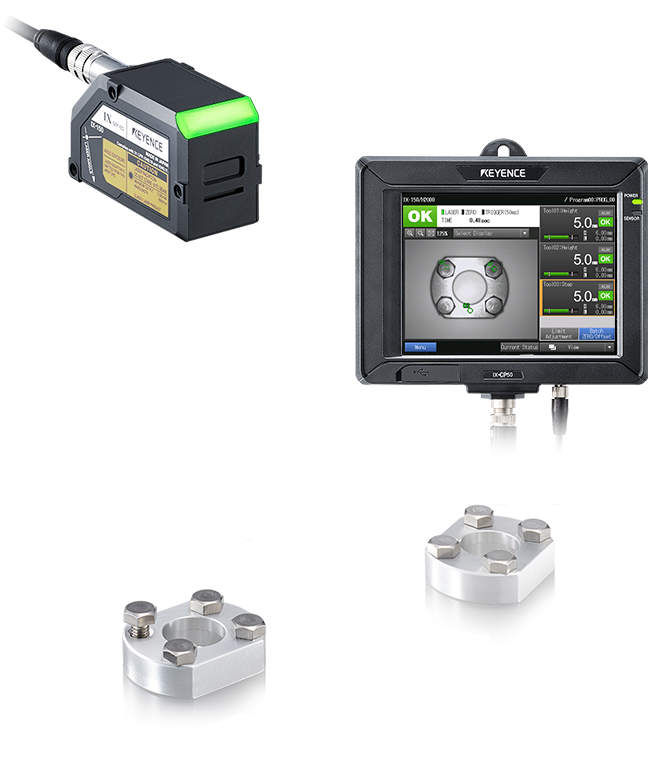

Image-Based Laser Sensor IX Series

Models

Sensor head with wide scan area
234.0mm x 176.0mm

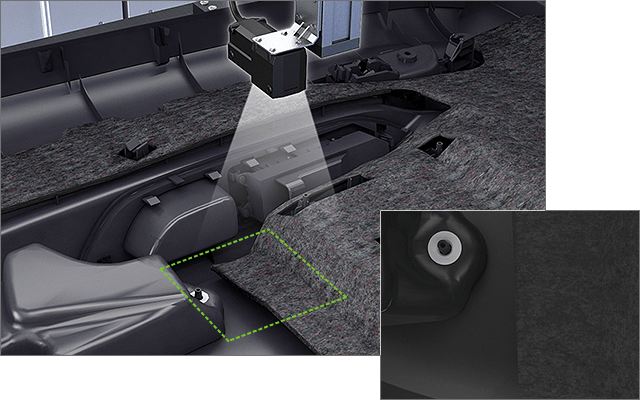

Unreliable Detection with Conventional Image-Sensors,
but Stable Detection with the IX-H

Low contrast targets result in difficult detection

For targets with similar colours or materials, the difference between light and dark is not always clear, which can result in unstable detection.

Conventional Image-Sensors

Target contrast does not matter

Height-based detection ensures stable results even when there is low contrast between the target and background.

IX-H

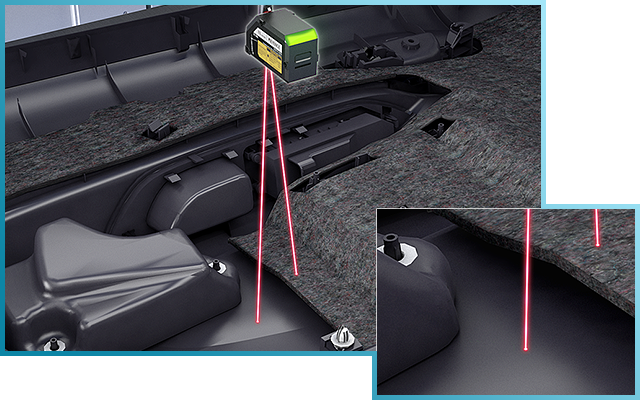

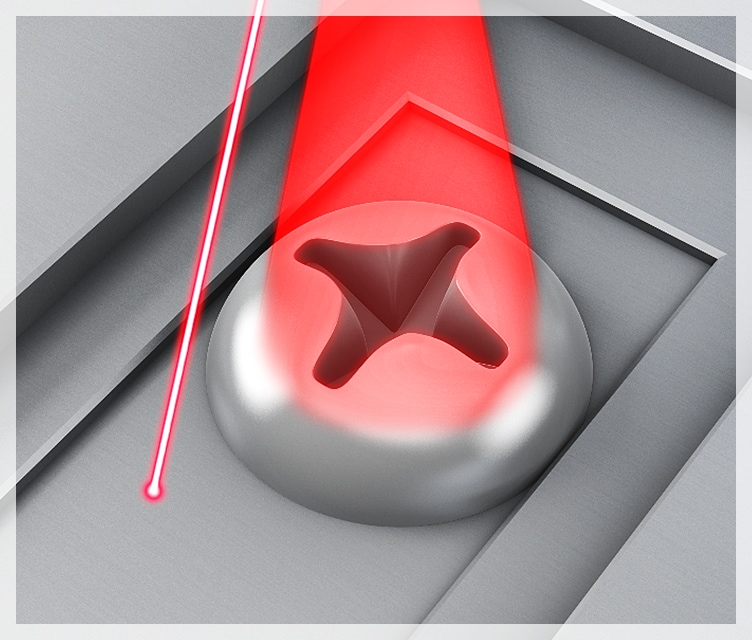

Unreliable Detection with Conventional Laser-Sensors,
but Stable Detection with the IX-H

Variations in position and orientation results in incorrect detection

Variations in target position and orientation can cause the spot where the laser hits the target to change, resulting in incorrect detection.

Conventional Laser-Sensors

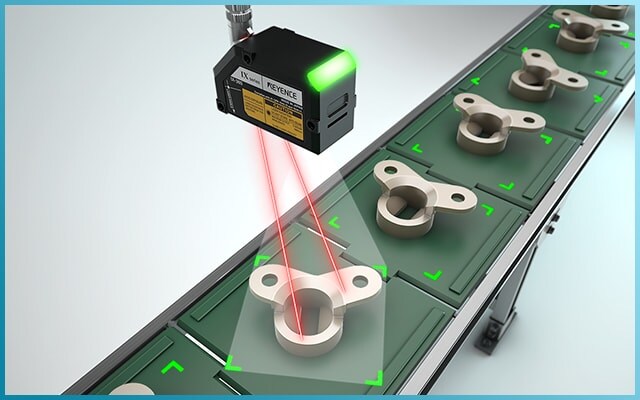

Position Adjustment tool
tracks misaligned targets

The camera follows the position, orientation, and placement of the target, making it possible to identify the target location for every target.

IX-H

Compatible with Various Workpieces

Height-based inspection of small shapes

Screws

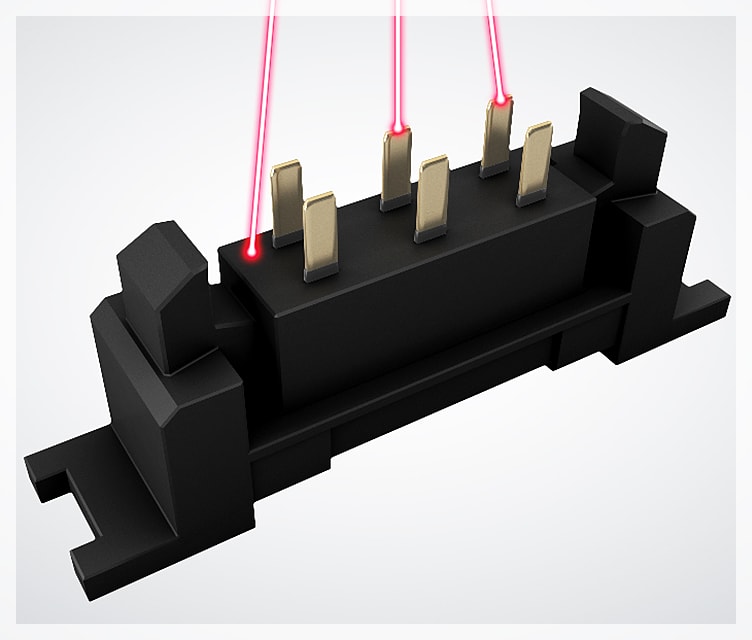

Connector pins

Width difference

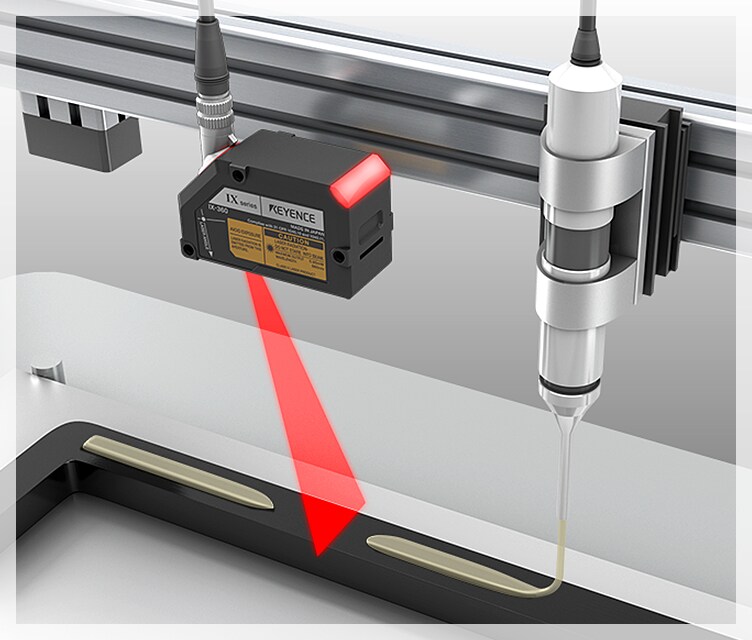

Incorrect adhesive application detection

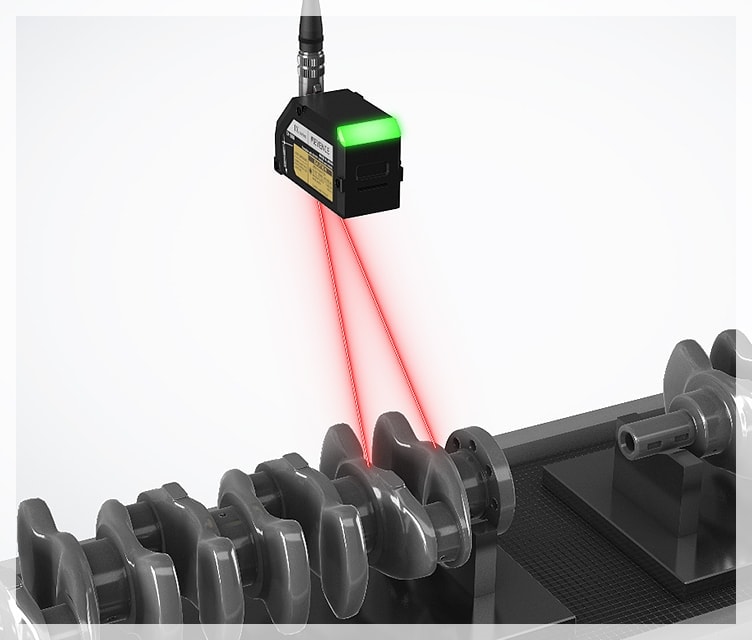

Crankshaft difference inspection

Learn more in the catalogue

View Catalogue
