3D Measurement of Connectors

3D Measurement of Connectors

The recent popularisation of digital equipment and communication devices have resulted in an increased demand for connectors.
Meanwhile, connector types and applications have also increased, leading to an even greater need for product inspection and analysis. KEYENCE’s latest model in the VK-X Series is capable of repeat measurements, automatic measurement of multiple locations of the same target, and creation of OK/NG analysis templates.
This section introduces technical information related to connectors as well as example inspections using 3D surface profilers.

Connector Overview

A connector is a device used for joining wiring for electronic circuits and optical communication. The use of connectors makes attachment/detachment and connection easier.

Merits of using a connector

  1. (1) Replacement with a new one makes repairs easy.
  2. (2) Easy to upgrade with modularisation.
  3. (3) Parts can be easily assembled and productivity can be improved.

Connector Terminology

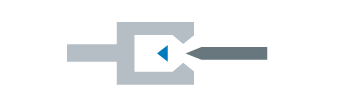

A
Device/panel
B
Receptacle
C
Plug
D
Cable
E
Jack

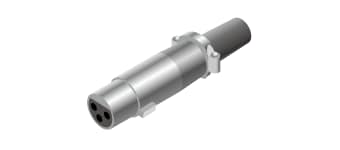

Plug

The male side of a pair of mating connectors that has a needle shaped contact.
It is used in conjunction with a jack.

Jack

The female side of a pair of mating connectors that has a lattice-shaped contact for the insertion.

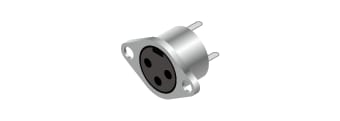

Receptacle

To be used with a plug but attaching it to a panel or box

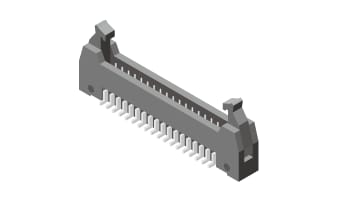

Header

This connector is used to connect a flat cable. The male side is called the header and is used as a set with the socket.

Socket

This connector is used to connect a flat cable. The female side is called a socket.

Connector Structure

Contact

Terminals that make electrical contact when the connectors are mated. Two common type include knife-fork contacts and bellows contacts.

Knife fork contact

The name comes from the fact that the structure of the contact is similar to a knife and fork.

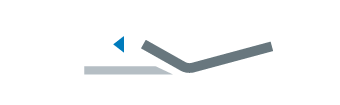

Bellows contact

The name comes from the fact that the shape of the contact resembles a bellows. This contact is formed by bending a thing plate and is highly reliable due to surface contact.

Terminal

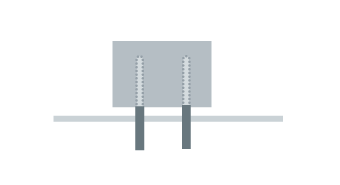

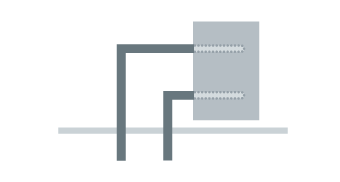

Terminals are used for connecting to a printed circuit board. Depending on the mounting direction needed, straight and right angle connectors can be used.

Straight
Right angle

Housing

Housing is an insulator to hold the contact (can also be called the shell).

Connector Purposes and Categories

Connection within the device

Connection with the PCB and line

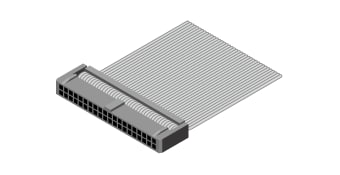

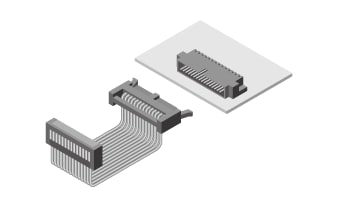

Flat cable connections are mainly used inside of devices.
They consist of a set of header and socket.

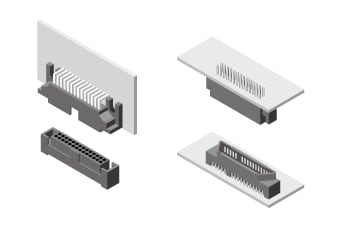

Board-to-board connection

The shape of the connector differs when boards are stacked on the top and bottom and when one side is connected standing up. It is used as the header and socket set.

Device to device connection

When used between devices, they are also called I/O (input/output) connectors or I/F (interface) connectors. Circular, square, coaxial, and optical connectors are common.

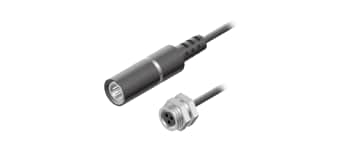

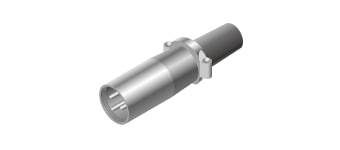

Circular connector

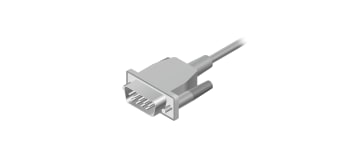

Square connector

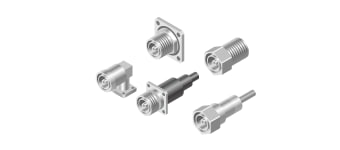

Coaxial connector

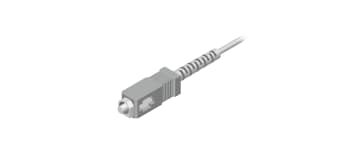

Light connector

Connector Inspection Examples

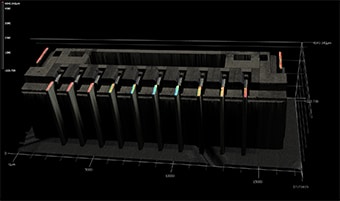

Coplanarity inspection

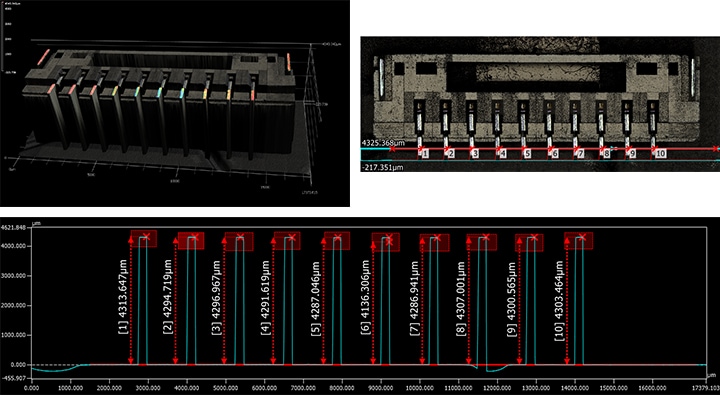

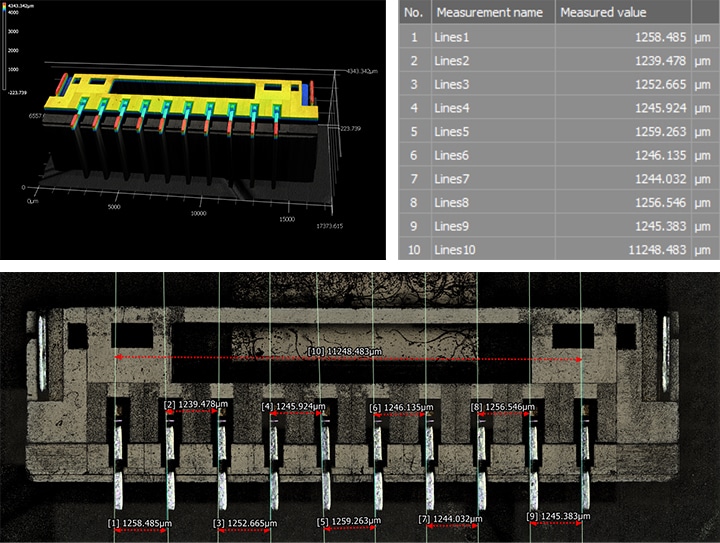

Pitch inspection
Pin planar position inspection

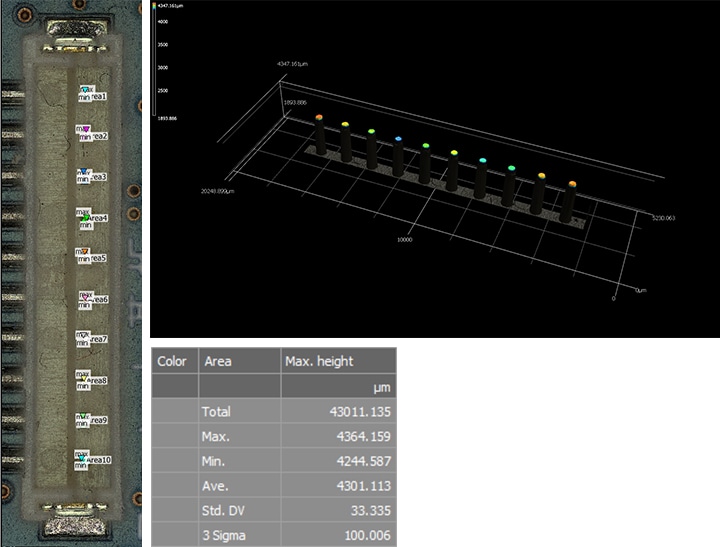

Pin height inspection

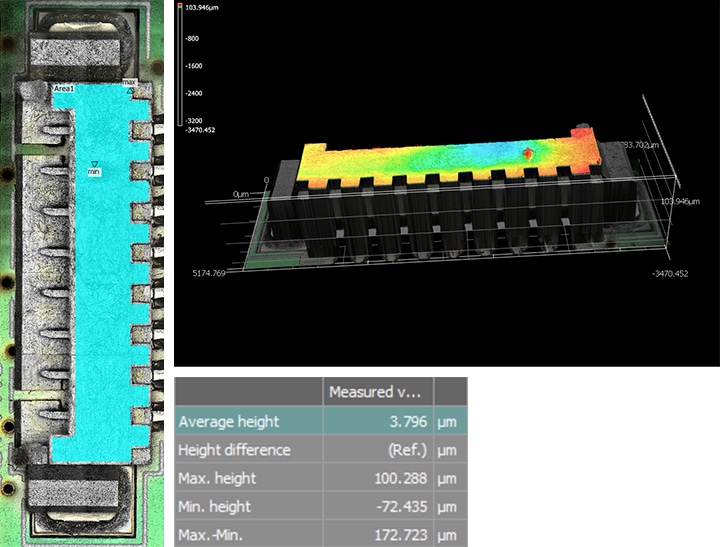

Housing warpage inspection
The height colour display makes it possible to visualise warpage.
The surface measurement function can also automatically measure the maximum and minimum surface points.
Terminal tip shape inspection
Measurement of microstructures that are difficult to measure with contact-type shape measurement systems is possible.

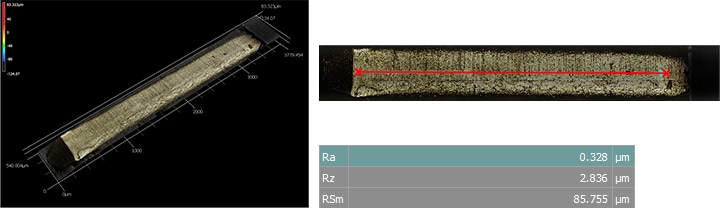

Terminal roughness inspection

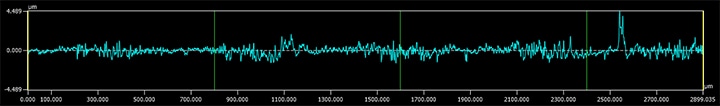

Cross-sectional measurement curve

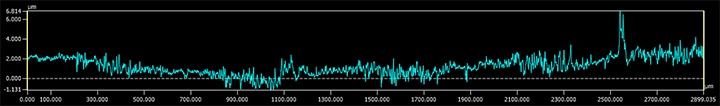

Roughness curve

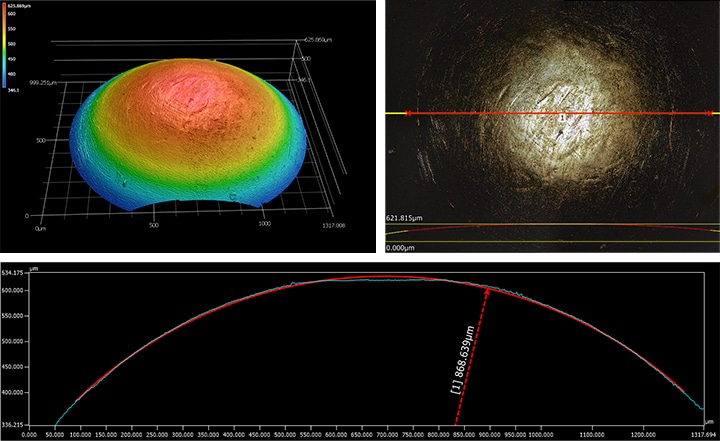

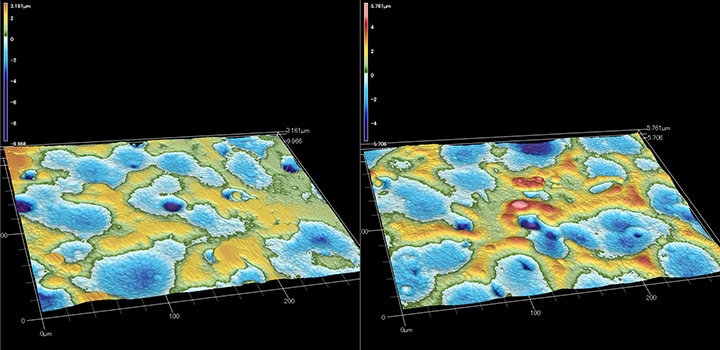

Terminal surface 3D comparison image
Light reflection varies between the centre and periphery of the connector terminals.
The collapsed apex shape at the periphery indicates strong reflection.
