Measuring the Parallelism of Press Formed Products

Types of springback

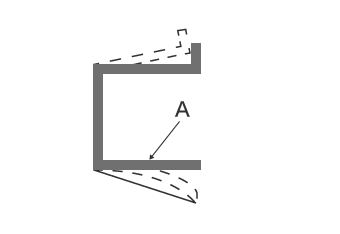

Causes of spring back can be identified by investigating the conditions of internal stress inside the formed product at the press bottom dead centre position. At bottom dead centre during bending, tensile stress occurs on the outside of the bend and compression stress occurs on the inside of the bend. Die separation is caused when there are stress differences in the sheet thickness direction, ultimately changing the angle. Typical types of springback include angle change or warpage of the vertical wall at the rounded part of the die shoulder, twisting, and warpage of the ridge line. The stress which causes springback and examples of springback defects are explained below.

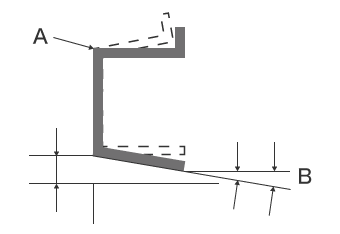

Angle change:

This is a defect in which the angle of bend changes due to stress differences in the sheet thickness direction.

Wall warpage:

This is a defect in which the wall becomes warped due to stress differences in the length direction.

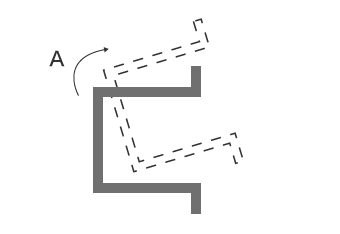

Twisting:

This is a defect in which the entire part becomes twisted due to the stress differences in the sheet thickness direction and to the stress acting towards the inside of the surface.

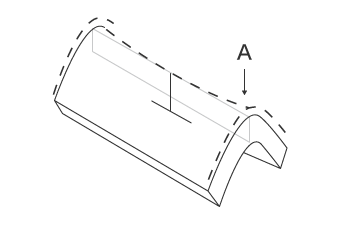

Warpage of the ridge line:

This is a defect in which the bending ridge line becomes warped due to the stress differences in the sheet thickness direction.

Countermeasures to parallelism springback

Countermeasures to spring back generally involve changing the die design or shape in the direction opposite to the direction where spring back occurs. By adjusting the amount of spring back and spring back direction into the press die, it is possible to achieve the dimensional tolerances.
Previously, countermeasures to spring back depended greatly on the designer’s intuition and experience, and modification of the die was performed after testing. However, because spring back tends to increase in proportion to the tensile strength of the steel sheet, a large number of die modifications may become necessary in cases when there is large spring back. To address this problem, simulations using FEM (Finite Element Method) are recently used in die design.
There are also other countermeasures such as “two-step bending” which performs bending twice with a single stroke of the machine. Additionally, “striking” adds projections to both corners of the punch cutting edge and “groove machining” creates a V-shaped indentation (V-notch) in advance at the part of the machined material which bends.
These countermeasures can be employed in cases when the cause of springback is known. Because the shapes of actual press formed products are complicated, it can be very difficult to identify the cause of springback. For this reason, a more effective method of calculating spring back is needed.

Calculating the amount of springback

If even a rough calculation of the amount of springback can be made, then it will be possible to enact countermeasures prior to machining. However, the calculation formula for predicting the amount of spring back is complicated, and in general it is used at the time of die design. For reference, the formula is shown below.

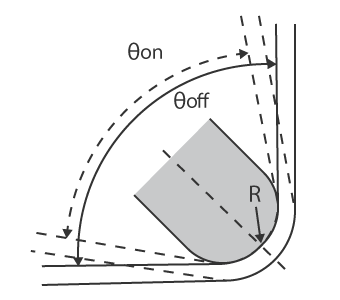

Δθ

Angle change resulting from springback

θon

Bending angle (°) when pressure is applied

θoff

Bending angle (°) after springback

σ_B

Steel sheet strength (N/mm²)

R

Punch curvature radius (mm)

E

Steel sheet Young's modulus (= 206,000 N/mm²)

t

Steel sheet thickness (mm)

* σ_B (steel sheet strength) and E (steel sheet Young's modulus) are inherent value of the material.

The cutting edge for bending is created based on the estimated amount of springback. It is difficult to calculate the error resulting from springback any further. In other words, it is easier to adjust the inner radius than to calculate the amount of springback. In addition, there is large error between the calculated value and actual value due to the effects of factors such as variation in sheet thickness and differences in machine specifications. This is why it is necessary to confirm the dimensional tolerance by measuring after forming.

Problems in parallelism measurement using a coordinate measuring machine

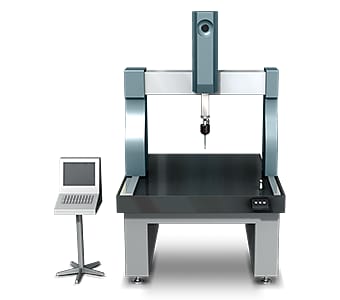

In general, when measuring warpage using a coordinate measuring machine, it is necessary for the probe to contact four or more corners on the measured surface of the target.
For example, when measuring a plate, generally six to eight points are measured. When the measurement area is large, measurement accuracy can be improved by increasing the number of measured points to collect more measurement data.

However, the following problems occur when a coordinate measuring machine is used for parallelism measurement.

• Because it is necessary to measure by contacting individual points, it is fundamentally difficult to identify the entire shape.
• Because measuring more points to acquire more measurement data requires much time, it is not possible to identify the detailed shape of the entire target.

Problems in parallelism measurement using a CNC image measuring instrument

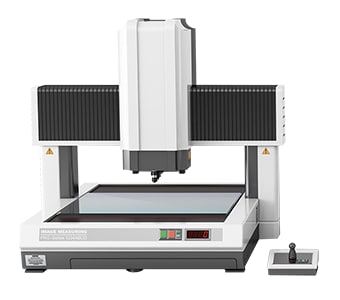

In general, an image measuring instrument captures the target on the stage using a CCD camera and performs 3D measurement. Observation using colour images is possible but there are the following problems when used for parallelism measurement.

• False detection may occur when there are protrusions on the target. In addition, when the measurement points or other settings are different, variation in measurement accuracy will occur.
• When the number of X, Y, Z, or other measurement items increases, the program becomes complex, requiring both advanced expert knowledge and man-hours for configuration. The required measurement man-hours increase in proportion to the number of measurement targets. There are major problems including the need for a measurement chamber, the need to keep the measurement chamber at the reference temperature, and the fact that accurate measurement cannot be performed by all workplace operators.

VR Series Advantage 1: Up to 800,000 points can be measured within a single scan, eliminating the need to repeat measurement.

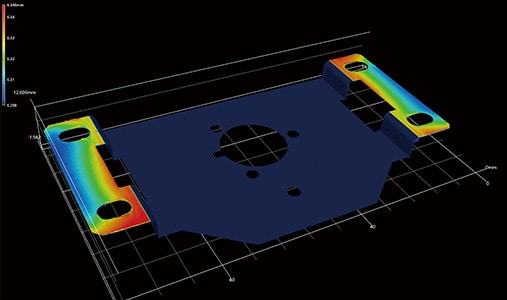

The VR-6000 can capture up to 800,000 data points across an entire surface (200mm × 100mm area) in as little as one second. Since measurement is not performed using lines or points, no repeat measurement is required, reducing overall time spent taking measurements. Measurement which requires datum such as parallelism or perpendicularity is also easy. Measurement data is automatically stored, and the stored data can be compared with other data or with 3D design data.

Unlike a coordinate measuring machine or CNC image measuring instrument, the VR-Series extracts the features of the target placed on the stage, and automatically performs position correction. The strict positioning which previously required much time and effort is no longer necessary. This makes it possible for any type of operator, regardless of experience level, to easily and instantaneously perform measurement.
With the VR-Series, even parallelism of targets with complex shapes can be accurately measured simply by placing the target on the stage and pressing a button.

• Download Catalogues
• Contact/Inquiries

VR Series Advantage 2: Quantitative comparison and analysis of multiple sets of measurement data are possible.

The VR Series can measure the 3D shape of the entire target by 3D-scanning the target surface in as little as one second. This makes possible to measure a large number of targets with no sample prep required. Measurement locations or number of measurement points does not need to be set up as the system will automatically set the measurement conditions for you.
Multiple sets of measurement data can be displayed in a list and the same analysis contents can be applied to all data sets at the same time.

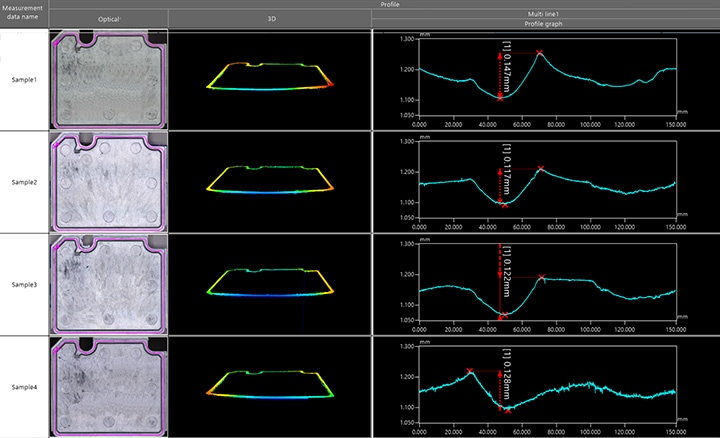

Differences in the shape data of multiple targets can be confirmed at a glance. This makes it possible to perform batch analysis of parallelism in multiple data sets, and easily perform quantitative evaluation of how much an NG part is warped compared to an OK part.
