Solutions for Problems in Form Observation and Analysis in Metallic Corrosion Test

Corrosion Test Importance and Procedure

Corrosion refers to the phenomenon in which metallic and other solid materials are deteriorated, consumed, or damaged due to chemical or electrochemical reactions with the surrounding environment, leading to loss of original functions. There are various forms of corrosion, such as intergranular corrosion, pitting, crevice corrosion, contact corrosion, and stress corrosion cracking (transgranular cracking and grain boundary cracking), which differ depending on the material and the environment.

To investigate the causes of corrosion and prevent reoccurrences, corrosion tests are conducted in a wide variety of industries. In particular, corrosion tests are important for products, such as automobiles, that are composed of various materials and whose safety is required in various outdoor environments.
In general, corrosion tests are conducted according to the following procedure.

Forms, Examples, and Causes of Local Corrosion

Many problems related to corrosion are said to be caused by local corrosion occurring at locations where its development rate is hard to forecast. Also, damage on the protective coating of metal surfaces may cause local corrosion, leading to local damage.
Typical forms and causes of local corrosion that can cause damage are described below.

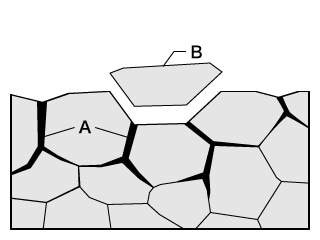

Intergranular corrosion

• Phenomenon: Corrosion caused by impurities and inclusions on grain boundaries with low corrosion potential. Shedding, in which intergranular corrosion causes grains to fall off, may also occur.
• Examples: This phenomenon occurs at locations where stainless steel or aluminium alloys have not been heat-treated properly or sufficiently. It also occurs at zones affected by welding heat.
• Causes:
  On the material side: Lowered grain boundary chromium concentration, grain boundary segregation of trace constituents, grain boundary deposits, etc.

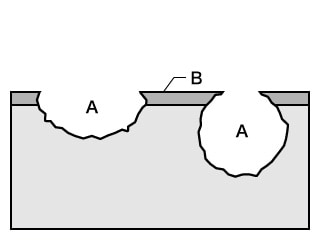

Pitting

• Phenomenon: Corrosion occurring at very limited locations on metal surfaces maintaining a passive state (passivation films) that proceeds deeply in a small hole diameter.
• Examples: A passivation film locally damaged by halogen ions (such as Cl-), resulting in corrosion in the shape of a hole. This is triggered by metal non-uniformity such as non-metallic inclusions in aqueous chloride solution of stainless steel and aluminium alloys.
• Causes:
  On the environment side: Halogen ions, dissolved oxygen.
  On the material side: Inclusions, defects, etc.

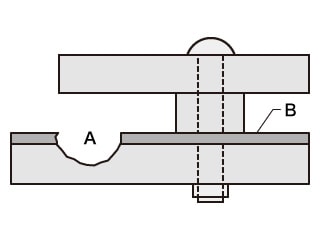

Crevice corrosion

• Phenomenon: Corrosion caused by lack of dissolved oxygen in crevices, which damages passivation films on metal surfaces, causing metals to melt.
• Examples: This phenomenon occurs on stainless, aluminium, and titanium flange faces.
• Causes:
  On the structure/material side: Crevice structure, oxidised scale, etc.
  On the environment side: Halogen ions, dissolved oxygen (the growing phase is the same as that for pitting).

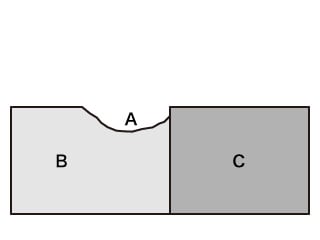

Contact corrosion (bimetallic contact corrosion and galvanic corrosion)

• Phenomenon: Corrosion that occurs on and is promoted on base metals due to the contact between metals having different electrode potentials and the existence of electrolyte solution on the contact point.
• Examples: Contact between aluminium and copper corrodes the aluminium and contact between steel and stainless corrodes the steel.
• Causes:
  On the material side: Contact between metals having different electric potentials. Among different contacting metals, the baser, the greater the corrosion.

Stress corrosion cracking

• Phenomenon: Corrosion caused by tensile stress (residual stress or external load stress), which locally damages the protective coating on the surface. Concentrated progress of corrosion will lead to cracking.
• Types of cracking forms: As the route in which stress corrosion cracking proceeds varies depending on the combination of metal and environment, there are also differences in cracking forms.

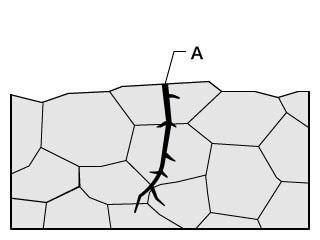

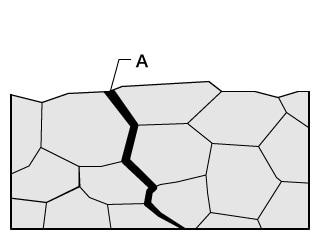

  A transgranular crack proceeds through grains while a grain boundary crack proceeds along grain boundaries.
• Causes:
  Transgranular crack: Inclusions, deposits, surface coating, material defects, etc.
  Grain boundary crack: Grain boundaries of trace elements, segregation, grain boundary chromium-depleted-layers, grain boundary deposits, grain boundary irregularity, etc.

Actual Examples of Solved Problems in Corrosion Tests

As causes of corrosion can be identified on the basis of the forms of corrosion, appearance observation and detailed observation using microscopes are important for corrosion test.
Corroded parts have three dimensional shapes, so observation of corroded parts has various problems, for example, in adjusting the focus and extracting lighting conditions. Also, it is sometimes difficult to observe intergranular corrosion or corrosion cracking in detail due to insufficient resolution.

KEYENCE’s VHX Series ultra-high-definition 4K Digital Microscope uses a high-resolution lens, a 4K CMOS, and a specially designed observation system. These and other built-in technologies enable accurate and quick observation and analysis with simple operation using high-resolution 4K images.
This section introduces application examples of the multifunction VHX Series 4K Digital Microscope in observation and analysis of corroded parts.

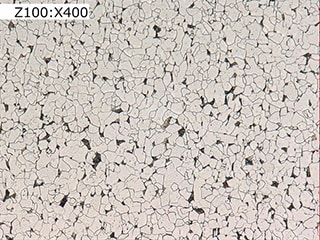

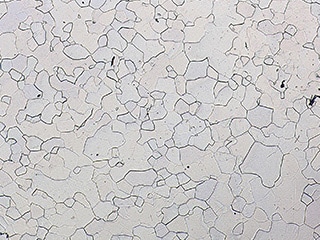

Observation of grain boundaries using high-accuracy, high-resolution images

With the VHX Series 4K Digital Microscope

The high-resolution lens and 4K CMOS enable observation using high-resolution, high-definition 4K images even in high-magnification observation of grain boundaries.
Hence it is possible to observe intergranular corrosion, shedding, and stress corrosion cracking (transgranular cracking and grain boundary cracking) in detail with clear images.

• Download
• Contact / Inquiries

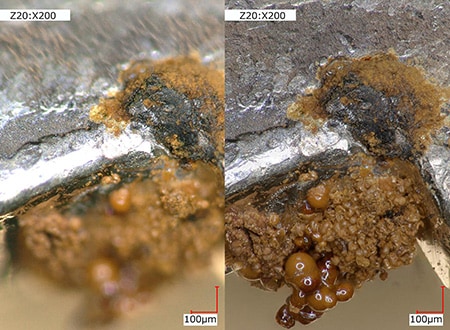

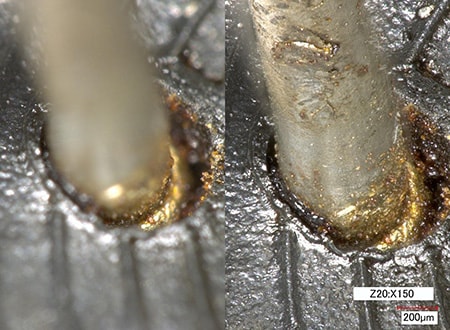

Fully focused observation of the entirety of a three-dimensional corroded part

With the VHX Series 4K Digital Microscope

The high-resolution lens that enables a deep depth of field and high-resolution observation, the 4K CMOS, and the real-time depth composition make it possible to instantaneously obtain a high-definition image, with the entire target fully focused, through simple operation.
There is no need to adjust the focus for each observation point, enabling quick observation from any angle.

• Download
• Contact / Inquiries

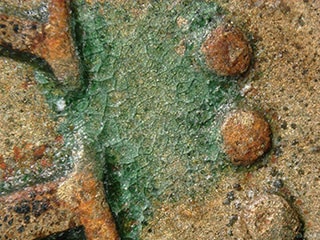

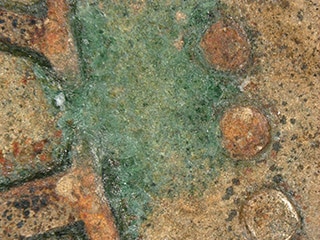

Observation of corrosion patterns without lighting adjustments

With the VHX Series 4K Digital Microscope

With the easy operation of the push of a button, the multi-lighting function can quickly obtain multiple images with lighting from all directions. By simply selecting the image most suitable for observation, users can perform observation using a clear image.
This function eliminates the time and effort that were conventionally spent on extracting lighting conditions and enables quick observation with high-definition images under the optimal lighting.
Furthermore, other multi-lighting image data is automatically saved even after the observation image is selected, so observation can be performed under different lighting conditions simply by reselecting an image. This function can eliminate the time and effort that are required to set the sample on the stage once more and to readjust lighting.

• Download
• Contact / Inquiries

A Microscope that Changes Corrosion Tests

In addition to the functions introduced here, the VHX Series high-definition 4K Digital Microscope is equipped with many more useful functions for analyses and tests.

As well as high-definition observation of corroded parts, the VHX Series seamlessly enables accurate 2D and 3D measurement on the submicron order and automatic area measurement, which is useful for quantitative evaluation of grain boundaries.
Furthermore, with the VHX Series, a single unit is all that is needed to easily and quickly complete an entire series of work operations, up to automatic report creation using observation images and measured values, by installing Excel and using templates.

For details on the VHX Series, click the button shown below to download the catalogue. For inquiries, click the other button shown below to contact KEYENCE.
