Advanced and Efficient Observation and Measurement of Ampoules and Vials
Ampoules and vials are solution containers widely used at medical sites to store solutions for use in injections and to fill syringes. These glass containers require high airtightness and reliability and their quality is closely related to the preservation and safety of the solutions they store.
This section introduces basic knowledge relating to ampoules and vials, precautions regarding their quality, and the latest observation and measurement examples using a 4K digital microscope effective in the quality management and quality assurance of ampoules and vials.
- What Is an Ampoule?
- What Is a Vial?
- Problems in Observation and Measurement of Ampoules and Vials and Examples Using a 4K Digital Microscope
- A 4K Digital Microscope That Optimises Ampoule and Vial Quality Management and Quality Assurance with One Device
What Is an Ampoule?
An ampoule is a container used to store injection solution. They are said to be the injection solution container with the lowest cost and highest airtightness. After the solution is poured into a glass cylinder, the tip of the container is melted and sealed to manufacture an ampoule. When it is time to administer the injection solution, the person administering the solution breaks the tip of the ampoule to open it. A hypodermic needle is then inserted into the opening to suck out the solution into a syringe. Recently, containers known as one-point-cut ampoules have become mainstream. They are processed to have a cut-line allowing the tip to be broken easily, facilitating easy opening. Mainly they are used as containers for small amounts of solutions, and some use coloured glass to shield against light.

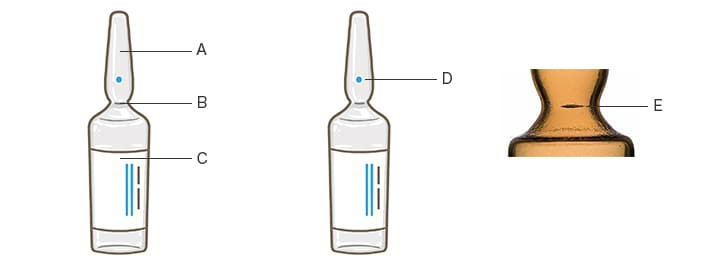

- A
- Tip
- B
- Neck
- C
- Body
- D
- Point mark
- E
- Cut-line
Precautions regarding ampoule quality
- Ampoules must be carefully cleaned to prevent contamination by foreign particles. Also, the ampoule must be filled with liquid medicine that is clear and bright, and the ampoule must then be melted and sealed.
- Breaking the tip to open the ampoule for use may create microscopic glass fragments that contaminate the injection solution. To ensure ampoules can be opened safely, caution must be exercised regarding the processing quality of their cut-lines.
- Air bubbles, cracks, breakage, etc. in the glass will negatively affect the storage quality of the ampoule and the quality of its contained solution. To prevent defective products from being released, it is necessary to identify and eliminate the causes of defects by inspecting the appearance of products and by performing magnified observation prior to shipping.
What Is a Vial?
A vial (or vial bottle) is a container used to store injection solution. After a sterile wide-mouth glass container is filled with the solution, the container is capped with a rubber stopper then wound and tightened using an aluminium cap or other method.
The rubber stopper can be pricked repeatedly to extract the solution from the vial into a syringe. Therefore, the solution can be collected several times.
One example application is diluting the solution in a vial with the saline solution taken from an ampoule when giving an injection. To prevent contamination in this procedure, it is necessary to use separate hypodermic needles.
- A
- Rubber stopper
- B
- Aluminium cap
- C
- Sterile glass container
Precautions regarding vial quality
- When a hypodermic needle pierces the rubber stopper, pieces of the stopper may be shaved off and enter into the solution as foreign particles, causing coring. This problem normally does not occur so long as the proper method is used to prick the stopper. However, caution is necessary because poor rubber stopper quality or errors during capping may lead to coring regardless of the technique with which the stopper is pricked.
- During the administration of an injection, the doctor visually checks for contamination with foreign particles after the solution is diluted, but the basic assumption is that unopened vials do not contain foreign particles. If a vial is contaminated with foreign particles during manufacturing, the quality and safety of the liquid medicine will be compromised, so caution is necessary regarding foreign particles affixing to the bottle or rubber stopper prior to filling with solution and also during capping with the rubber stopper and other processes.
- Glass container defects such as cracks, scratches, air bubbles, and black spots may decrease the container’s preservation and affect the quality of the contained solution. Detailed appearance inspections are required to prevent these defects and to identify their causes and prevent them from reoccurring.
Problems in Observation and Measurement of Ampoules and Vials and Examples Using a 4K Digital Microscope
Borosilicate glass is commonly used as the material for ampoules and vials. Glass container defects such as cracks, scratches, and air bubbles may affect the quality and safety of the solution, so precise observations and evaluations using a microscope are required not only in automated 100% inspections, but also in the work of quality management and assurance.
However, glass has characteristics such as transparency, permeability, and diffuse reflection of light, leading to the issue that it is very difficult to check processing locations and to perform magnified observation and measurement of microscopic appearance problems.
KEYENCE’s VHX Series 4K digital microscope is equipped with a cutting-edge, high-resolution HR lens; a 4K CMOS image sensor, and an observation system that provides access to diverse functions with simple operations. The VHX Series optimises observations and measurements and improves their sophistication by allowing for observation with clear 4K images and for non-contact 2D and 3D measurement.
Read on for examples of observation and analysis of glass containers—ampoules and vials—using the VHX Series.

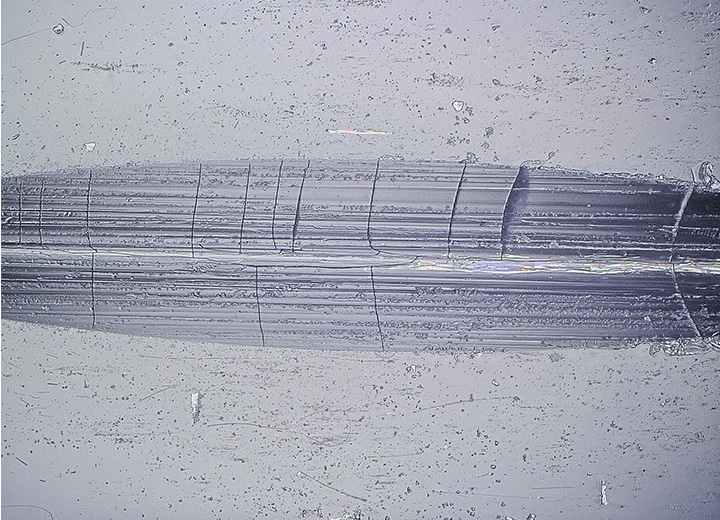

Observation and 3D measurement of the cut-line on an ampoule
The VHX Series 4K digital microscope enables quick and clear observation of glass—for which it is difficult to determine lighting conditions—with simple operations. This product is equipped with the Multi-lighting function, which automatically captures multiple images with lighting from all directions just by pressing a button. Observation can be started promptly by simply specifying an image suitable for the purpose from the automatically captured images. This function greatly reduces the condition determination time required until now.
This product is also equipped with a High Dynamic Range (HDR) imaging function that combines together multiple images at varying shutter speeds to acquire an image with high colour gradation. This function enables glare-free, high-accuracy, and high-contrast observation of the textures of ampoule cut-lines, which were difficult to observe until now due to their low contrast against the background, and is effective in observing microscopic cracks in glass containers, which is also difficult.
Furthermore, the VHX Series quickly composes the image from multiple images with varying focus positions, allowing it to display 3D images that even capture textures and surface roughness. The result is that the 3D image displayed on the screen can be rotated to any angle for observation without having to move the sample on the stage or change the angle of the lens.

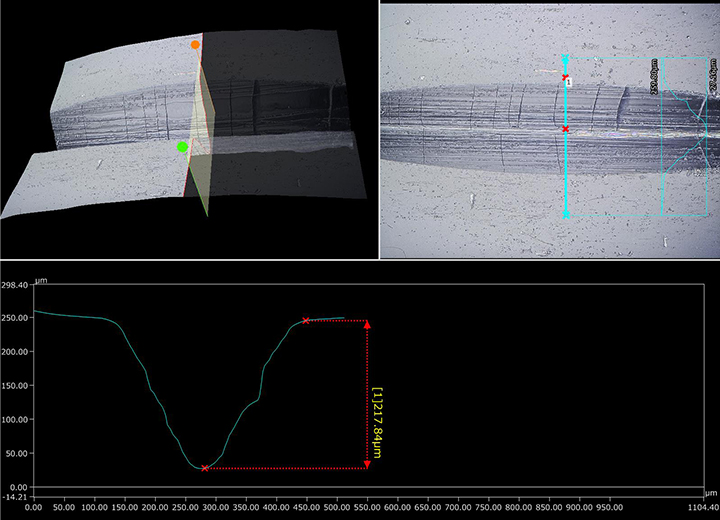

Profile measurement can also be performed simply by selecting arbitrary points. Sub-micrometre level measured values can be acquired for cross-section shapes and surface irregularities of cut-lines in a non-destructive, non-contact manner.

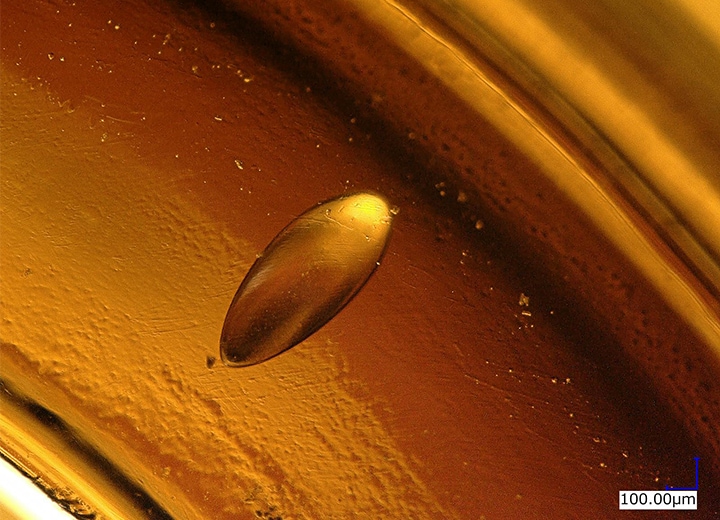

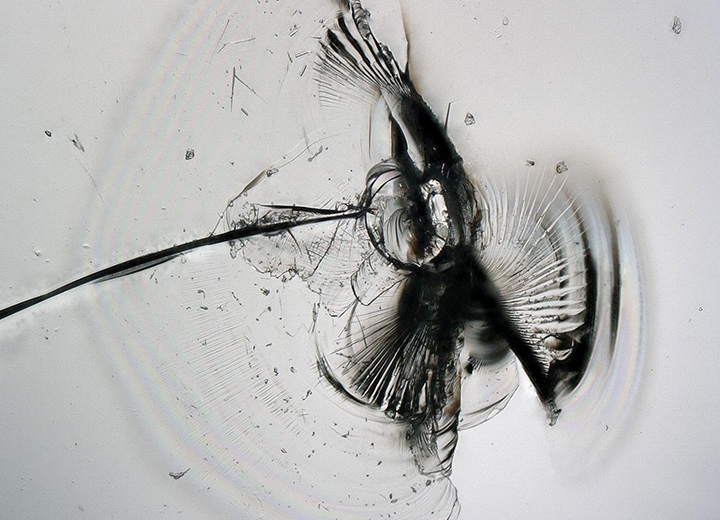

Observation of ampoule and vial defects
Defects and flaws such as cracks, fractures, and air bubbles in glass containers that require high airtightness such as ampoules and vials impair product durability, safety, and reliability. However, these defects are three dimensional due to the thickness of the glass, so it is difficult to observe the entire target clearly with optical microscopes because only a part of the target can be brought into focus under high-magnification observation.
The VHX Series 4K digital microscope is equipped with an optical system that combines high resolution with a large depth of field. Hence, it enables observation with high-accuracy images in which the entire target is in focus even if that target is deep. This product is also equipped with the depth composition function, which quickly composes an image from multiple focused images. Hence, even microscopic fractures and air bubbles that are deep and contained within the thickness of the glass can be observed clearly and in their entirety with 4K images fully in focus throughout the field of view even at high magnifications.
A 4K Digital Microscope That Optimises Ampoule and Vial Quality Management and Quality Assurance with One Device
With its high performance and diverse functions, the VHX Series 4K digital microscope improves the sophistication and efficiency of the quality management and quality assurance of glass containers that hold solutions and require stability as well as high airtightness and reliability.
The transparency and diffuse reflection of light characteristic to glass leads to the determining of conditions such as lighting and shutter speed taking a long time and requiring a high level of expertise. With this product, this condition determination as well as bringing an image into focus throughout the entire field of view are possible with simple operations. Fast observations and evaluations are now a reality.
Furthermore, observation with 3D images that even capture the surface conditions, non-destructive and non-contact 2D and 3D measurement of microscopic processing locations, and visualisation and profile measurement of cross sectional shapes can be performed seamlessly.
Equipped with many other functions that respond to various needs presented by observation and analysis, the VHX Series can also automatically create reports, providing strong support for the optimisation of work with just a single device.
