Ring Lights (Direct) General-purpose ring illumination unit
CA-DR

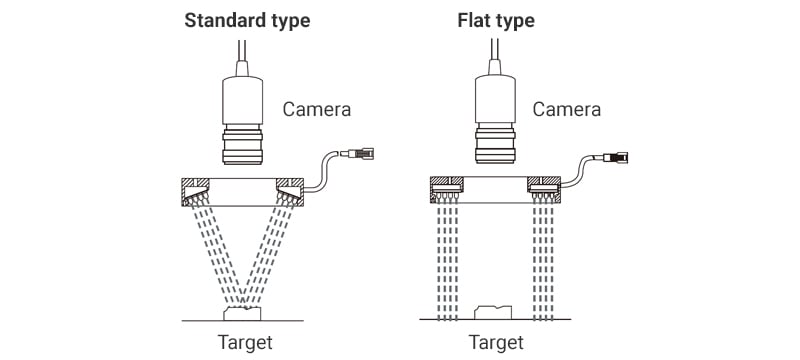

Ring light illumination techniques

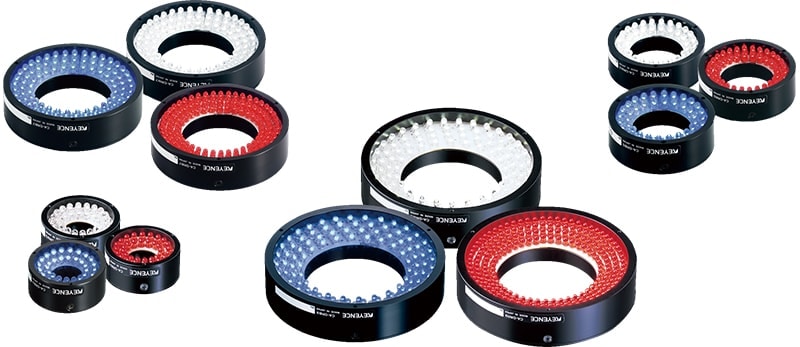

The CA-DR Series includes flat, horizontally arranged LEDs, which help provide uniform intensity across a target. Ring lights are available in six sizes and three colours, with optional diffusion and polarising plates, making it well suited to a wide variety of basic application and camera needs.
Application
Plastic bottle

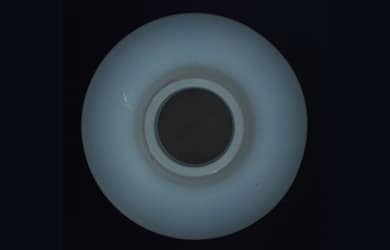

Ring light only
Light is reflected circumferentially according to the target profile. The target surface condition can be clearly seen.

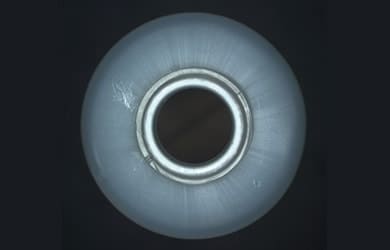

Ring light + polarising filter
You can obtain an image without halation by using the polarising plate.
