Area Roughness Parameters

Ssk (Skewness)

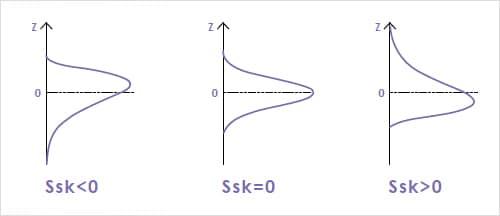

Ssk values represent the degree of bias of the roughness shape (asperity).

Ssk<0: Height distribution is biased above the mean plane.
Ssk=0: Height distribution (peaks and pits) is symmetrical against the mean plane.
Ssk>0: Height distribution is biased below the mean plane.
