Sdq (Root mean square gradient)

This parameter is calculated as a root mean square of slopes at all points in the definition area.

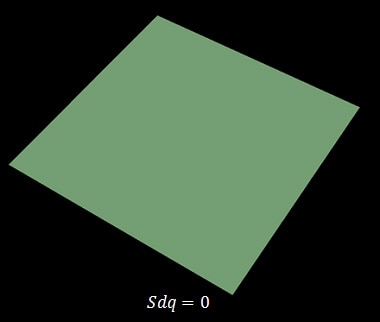

Sdq of a completely level surface is 0.
Sdq (Root mean square gradient)

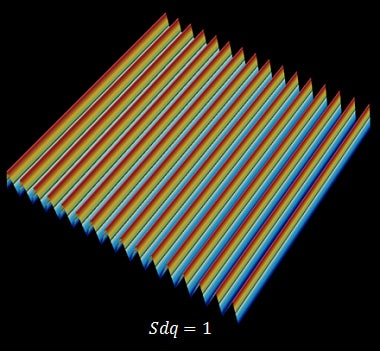

When a surface has any slope, Sdq becomes larger. The following surface is a plane with gradient components of 45 degrees and its Sdq is 1.
Sdq (Root mean square gradient)

Sdq (Root mean square gradient)
